Syringe Filling Machines [SJ series]

Mixed materials are filled with high precision and efficiency
Containers used in Kakuhunter can be used as they are. Various materials can be filled by changing the settings.

  • Manual Filling Model for Small-capacity Syringes

    ModelSJ-800 [Manual Type]

  • Automatic Filling Model Applicable to Even Large-capacity Syringes

    ModelSJ-1200 [Automatic Type]

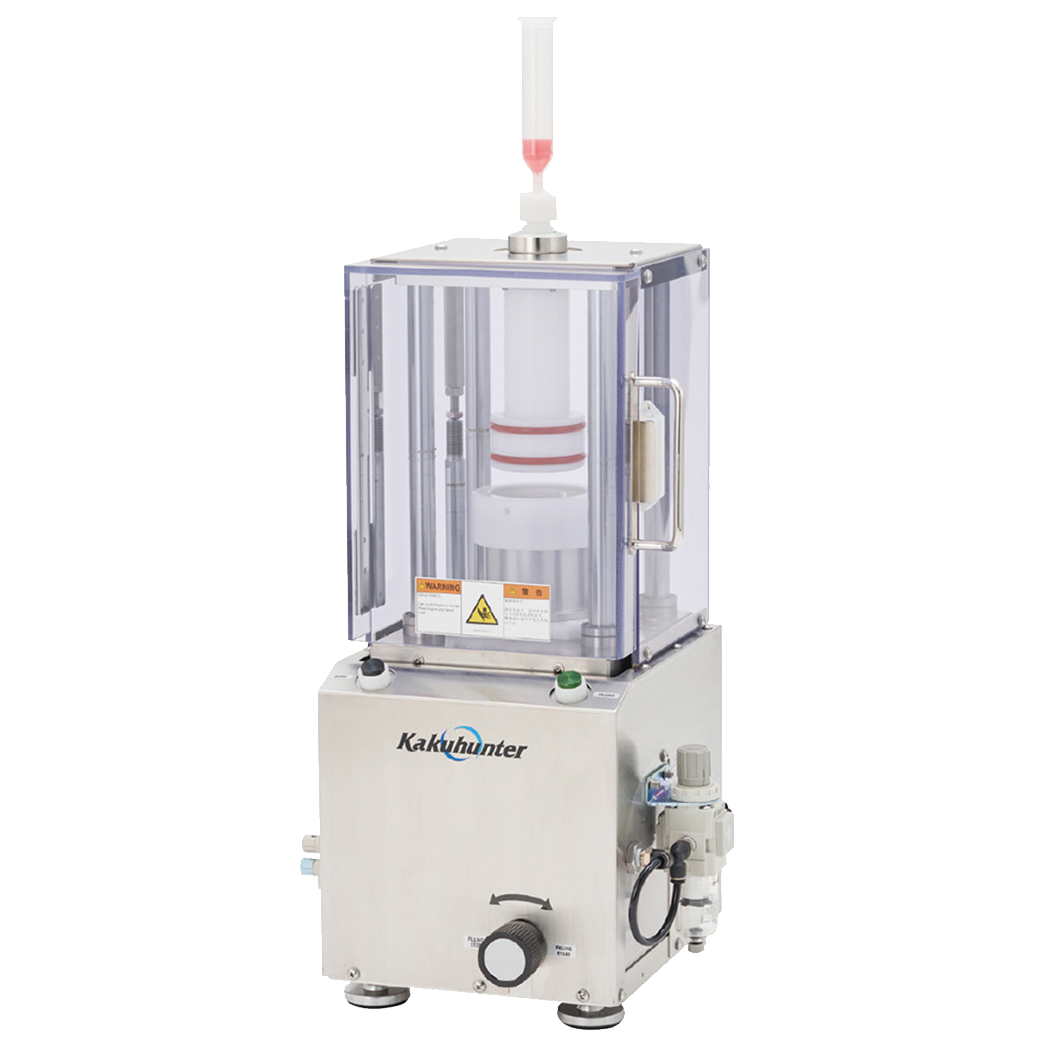

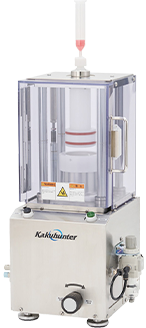

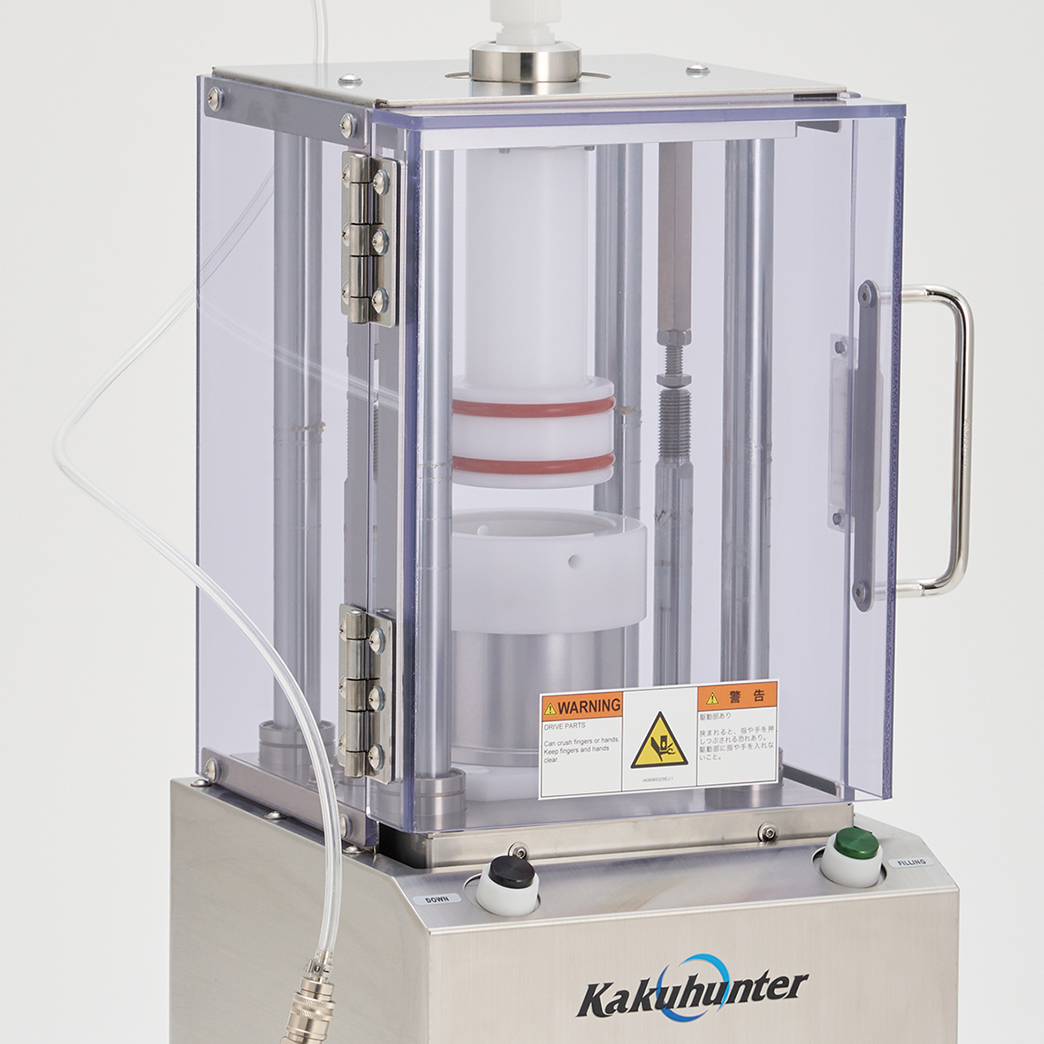

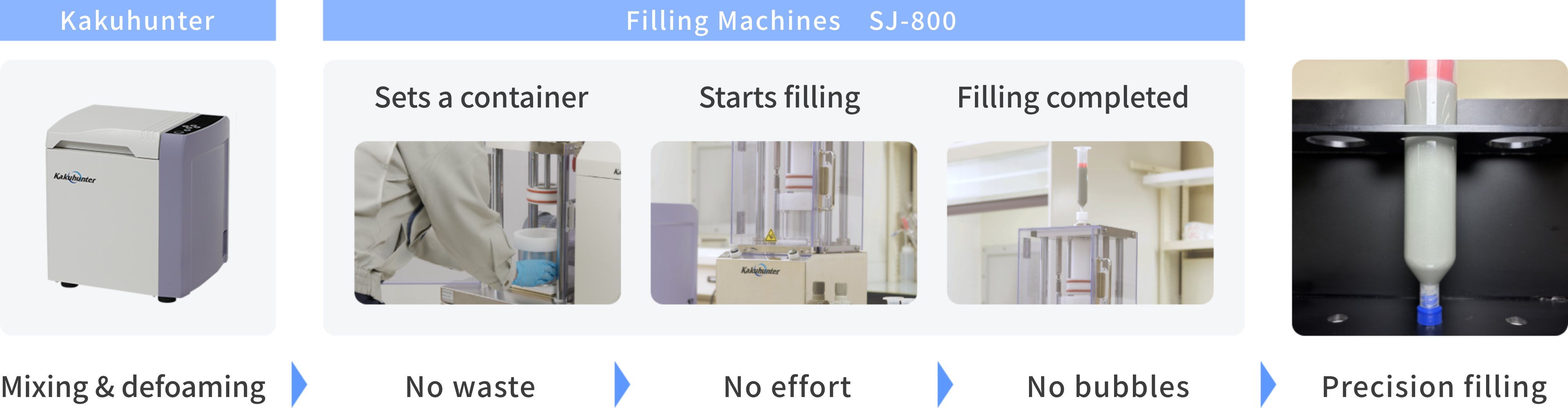

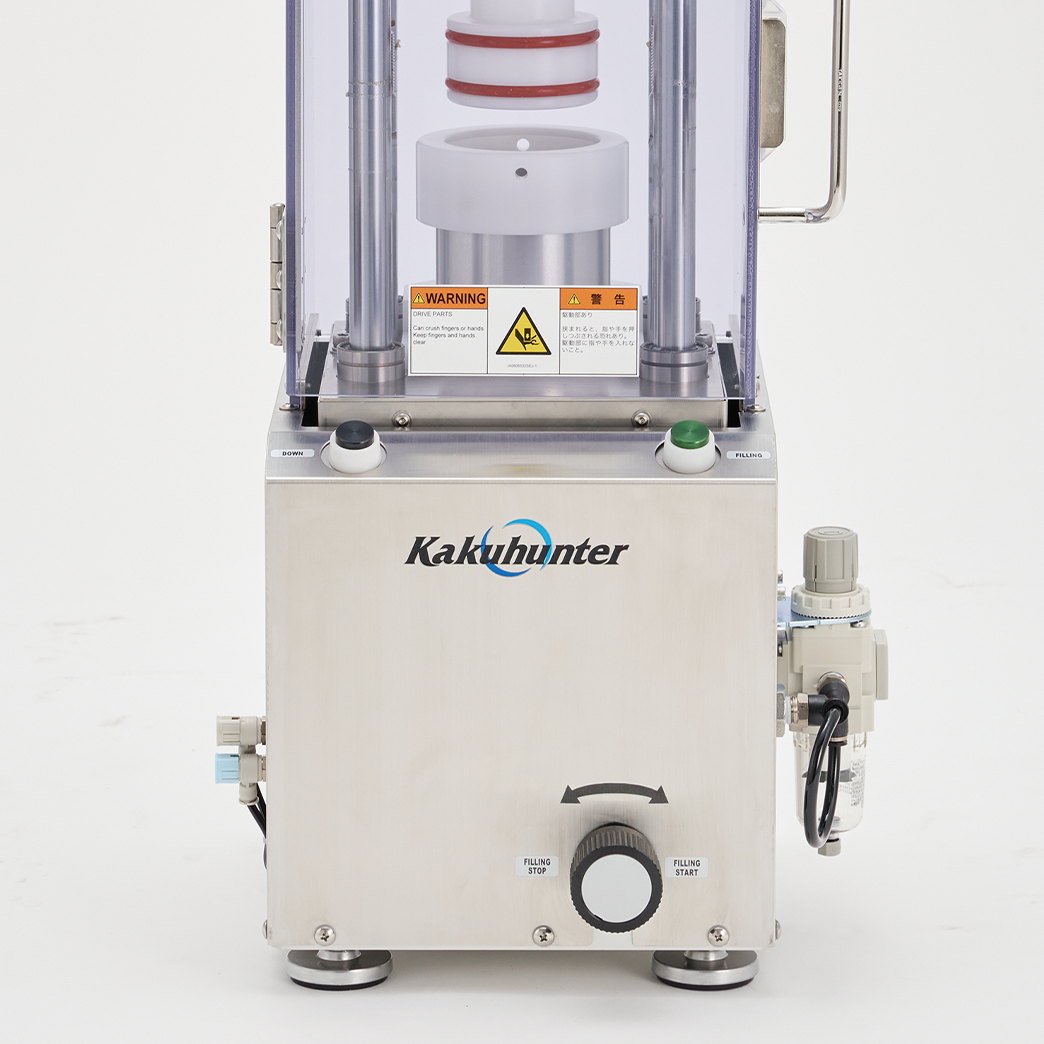

  • SJ-800 [Manual Type]

    Manual filling machine that can fill small-capacity syringes efficiently!

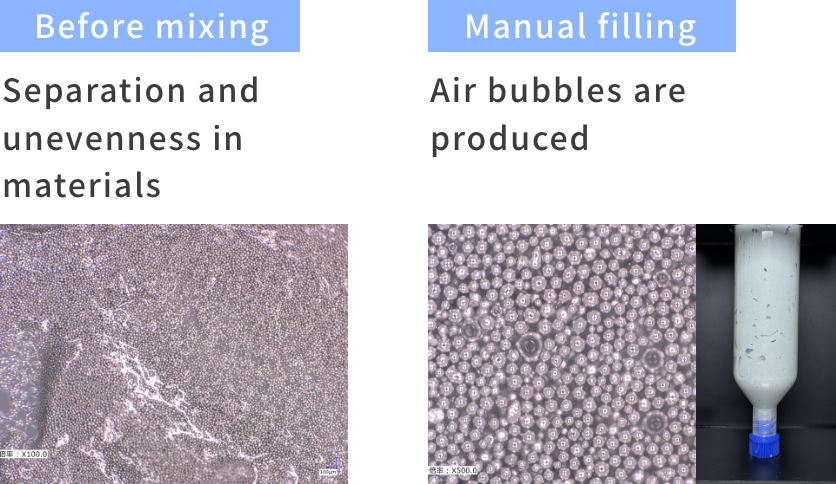

    • No air enters materials since filling starts after air in syringes is removed by the vacuum mechanism.
    • Can be installed anywhere because of the compact size.
    • As applicable syringes, products made by respective dispenser manufacturers can be used.
    • Containers used in the planetary centrifugal mixer can be set as they are.
      Disassembly and cleaning are easy because of the simple structure.

    Filling Mechanism and Features

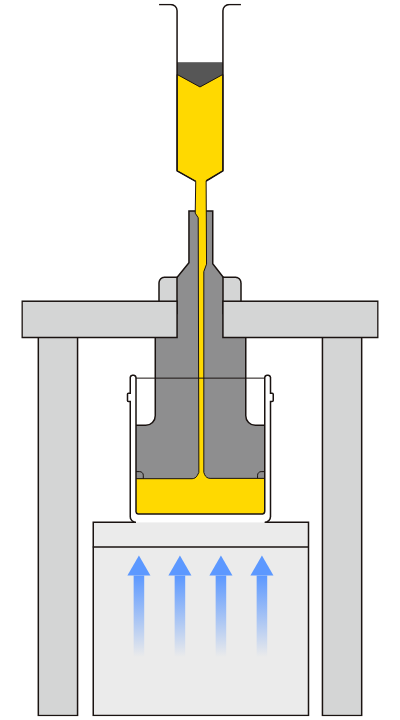

    The “Table Elevation Method” is Adopted for Filling.

    As containers containing mixed and defoamed materials are fixed on the table, syringes are directly filled by pistons.

    Features

    1. As material containers are fixed on the precisely controlled table, syringes are directly filled through container adapters.
    2. They can be filled efficiently because the pathways of materials are straight and short.
    3. Since no valve is used, the liquid contact parts are structured with extreme simplicity, and filling can be performed to the end of the amounts remaining in containers with little loss.

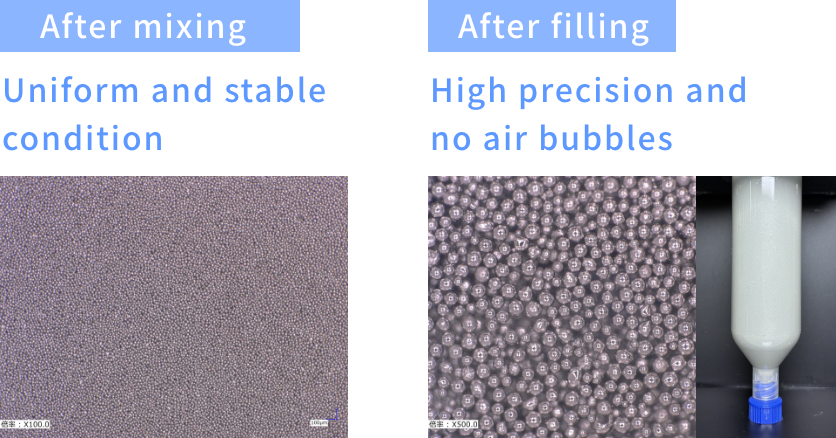

    4. No air enters materials since filling starts after air in syringes is removed by the vacuum mechanism.

    Specifications

    Item Description
    Filling method Table elevation method
    Material container Designated Standard Container（Approx. 300ml or 350ml container）
    Throughput Syringes: 10 ~ 55ml (long piston)
    Outer dimensions W315 x D305 x H560 (mm)
    (＊Exclude top syringe clamp part)
    Weight Approx. 60kg
    • * Specifications are subject to change without notice.
    • * Consult us for compatible containers.

    FreeBrochure Download

    Includes product specifications and useful information that help you select a product.
    The brochure may also be used with the Ringi system, etc.

    Download a brochure from here (free)

    * You will be redirected to a page on another domain managed by us.

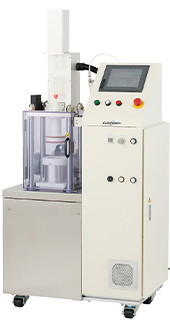

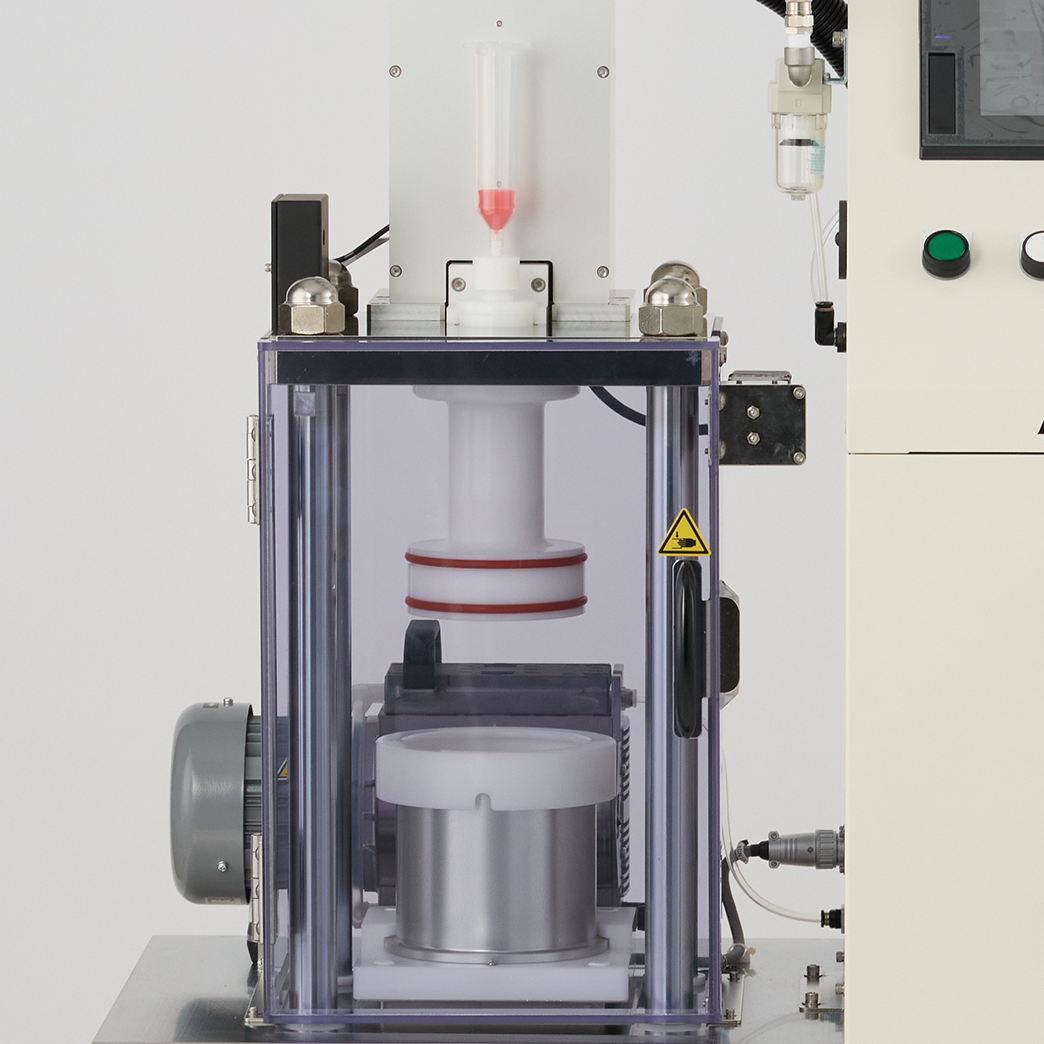

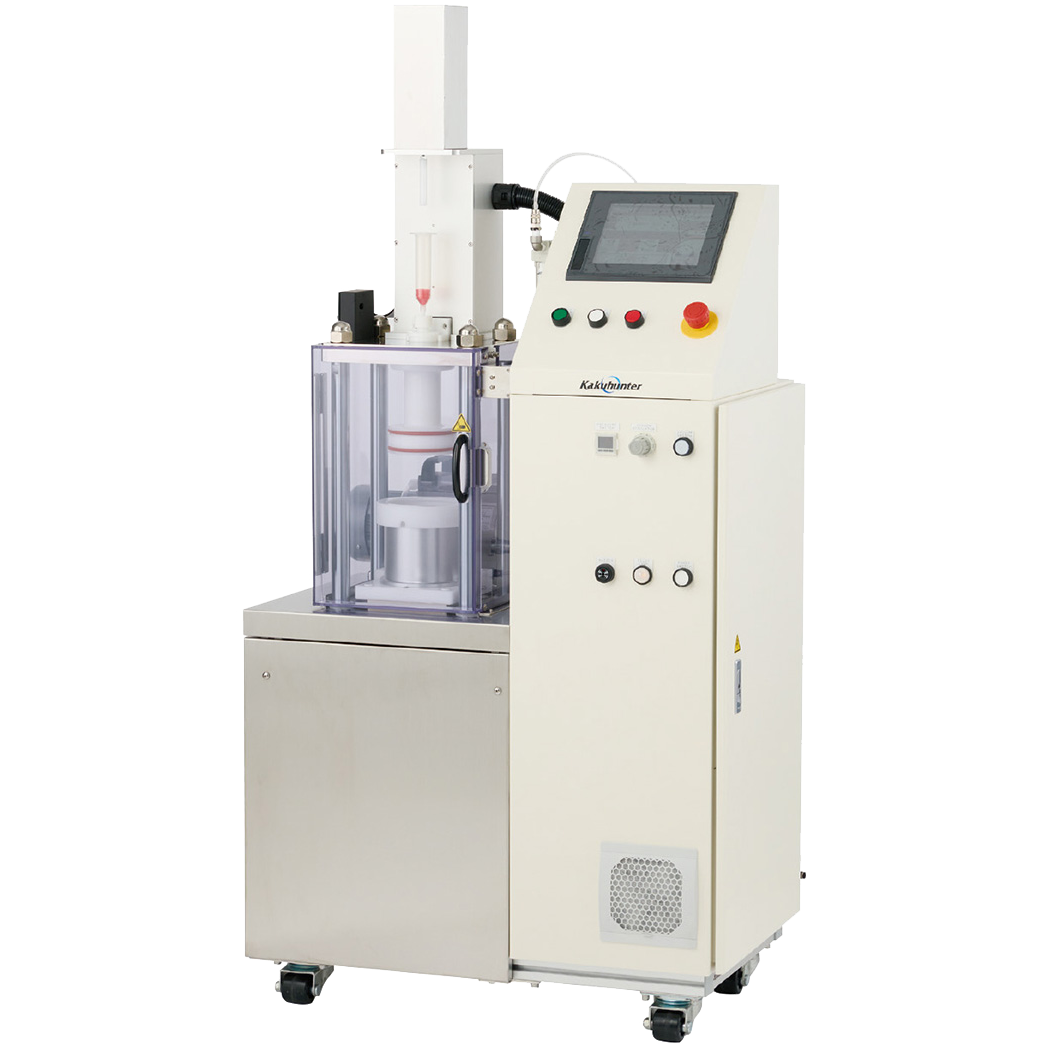

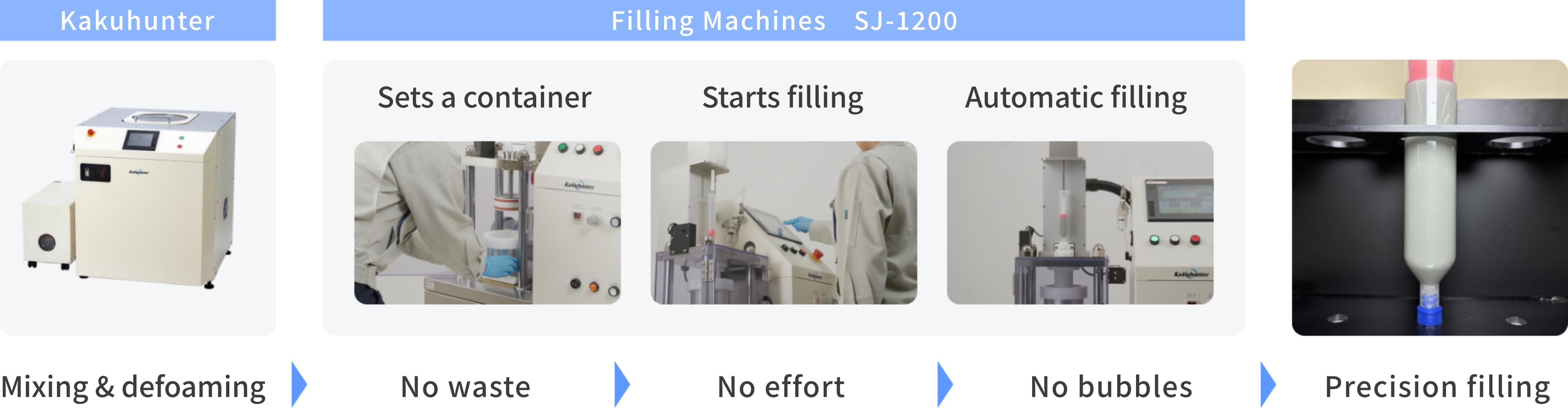

  • SJ-1200 [Automatic Type]

    Automatic filling machine that automates filling even large-capacity syringes

    • No air enters materials since filling starts after air in syringes is removed by the vacuum mechanism.

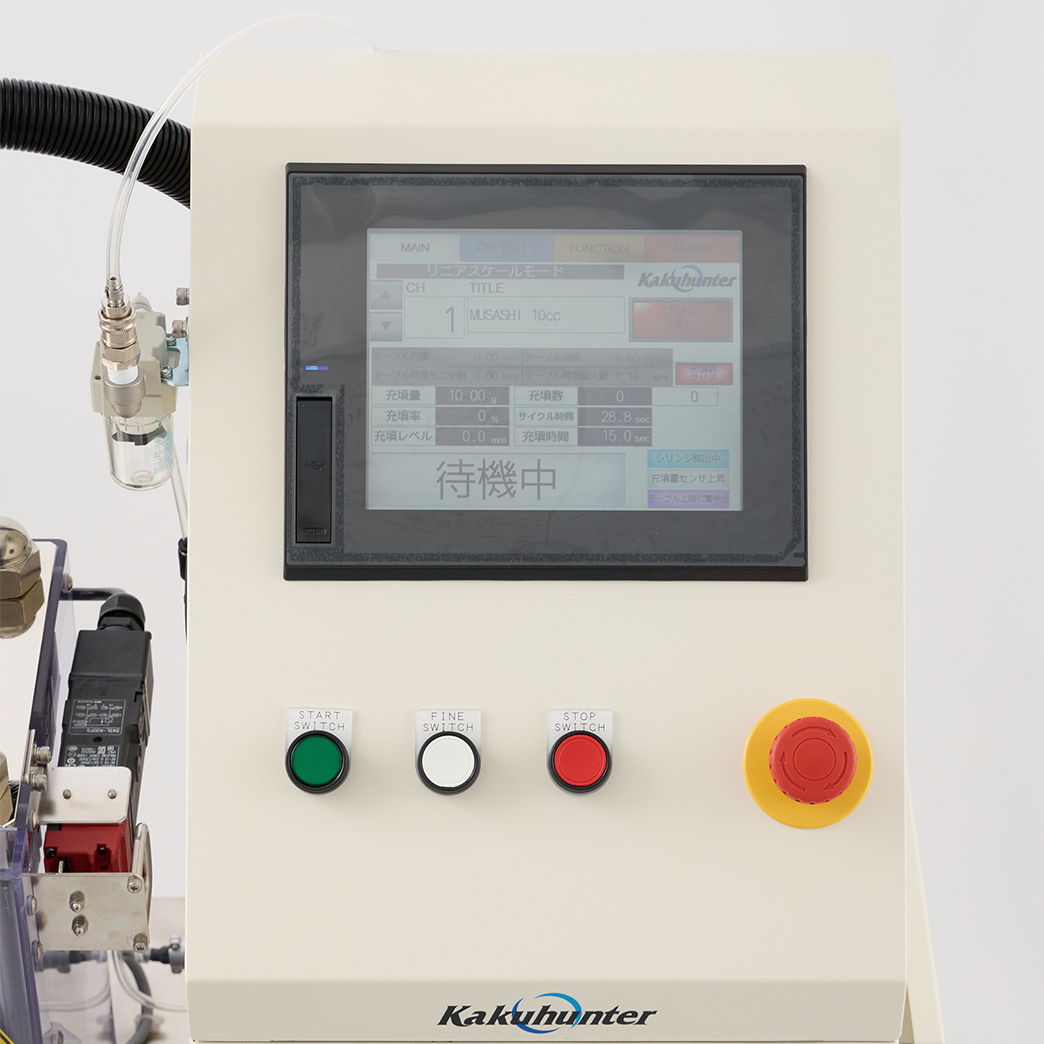

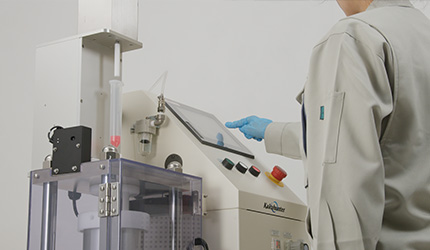

    • Parameters can be set according to filling viscosity.
    • For automatic filling, settings can be made for up to 99 channels.
      (Various syringe samples have already been preset : for 10 channels)

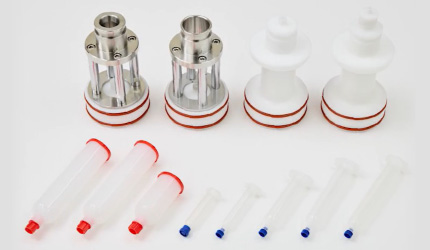

    • As applicable syringes, products made by respective dispenser manufacturers can be used.
    • Containers used in the planetary centrifugal mixer can be set as they are.
    • Disassembly and cleaning are easy because of the simple structure.

    Filling Mechanism and Features

    The “Table Elevation Method” is Adopted for Filling.

    As containers containing mixed and defoamed materials are fixed on the table, syringes are directly filled by pistons.

    Features

    1. As material containers are fixed on the precisely controlled table, syringes are directly filled through container adapters.
    2. They can be filled efficiently because the pathways of materials are straight and short.
    3. Since no valve is used, the liquid contact parts are structured with extreme simplicity, and filling can be performed to the end of the amounts remaining in containers with little loss.
    4. No air enters materials since filling starts after air in syringes is removed by the vacuum mechanism.

    Specifications

    Item Description
    Filling method Table elevation method
    Material container Standard container available (approx. 1120ml container)
    Throughput Syringes: 10 ~ 55ml (long piston) / 70ml (short piston)
    Barrels: 2.5 oz (long piston) / 6 oz (short piston)
    Outer dimensions W810 x D472 x H1613 (mm)
    (* Not including the handle and other projections)
    Weight Approx. 300kg
    • * Specifications are subject to change without notice.
    • * Consult us for compatible containers.

    FreeBrochure Download

    Includes product specifications and useful information that help you select a product.
    The brochure may also be used with the Ringi system, etc.

    Download a brochure from here (free)

    * You will be redirected to a page on another domain managed by us.
