Kakuhunter SK-1100TV/TVSIII

1100 ml x 2 cups specifications
・ Maximum weight 1kg* x 2 cups.
・Cup trays can be selected according
　to purpose.
・ Compatible with various syringes of 100cc
　or less, and various barrels of 170cc or less.



Throughput

1100 ml (1kg) x 2 cups

Function

  • Individual Revolution and Rotation Speed Control System
    Individual Revolution and Rotation Speed Control System
  • Step Operation
    Step Operation
  • Vacuum Reduced Pressure Function
    Vacuum Reduced Pressure Function
  • Shifted Cup Tray
    Shifted Cup Tray

Click here for more details on customization.

Mode

  • F-mode Anti-separation
    Sustain separation for materials with different specific gravity.

· Want to mix and defoam medium-capacity
　materials.
· Want to mix and defoam high-viscosity
　materials and materials that are different
　in specific gravities.
· Want to vacuum-defoam fine bubbles.

Two types of cup trays are available and can be selected according to purpose: straight (SK-1100TVIII) and shifted (SK-1100TVSIII)

While the straight type prioritizes the throughput, the shifted type improves the mixing ability as the contact surfaces between containers and materials are increased compared with the straight type.

* The effects differ with materials. You can choose either type according to your target throughput and mixing ability.

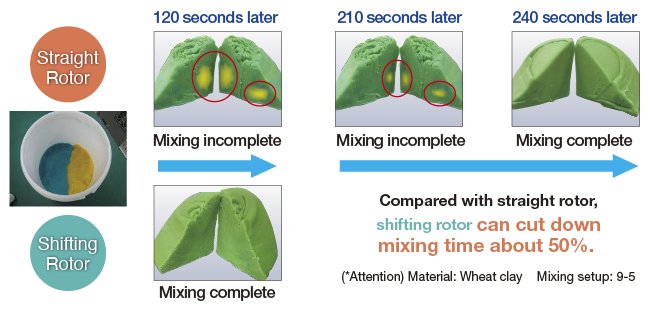

Comparison of Mixing Time (Straight Rotor vs Shifted Rotor)

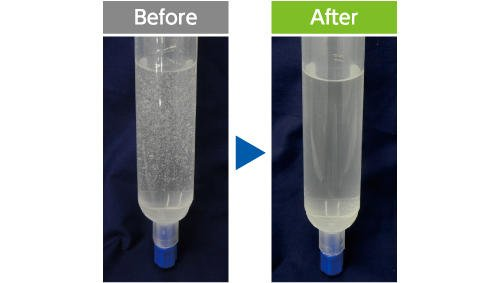

Powerful Defoaming by the Vacuum Reduced Pressure Function

By vacuum reduced pressure in the chamber, even microlevels of fine air bubbles can be defoamed to improve quality stability.

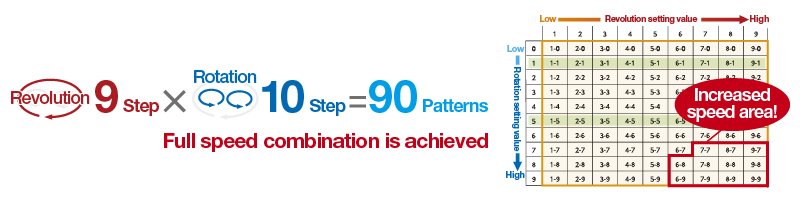

Powerful Mixing by Significantly Increasing the Rotational Speed (Individual Speed Control System)

Setting ranges are wider than that of conventional machines, making it possible to select conditions suited to the materials.

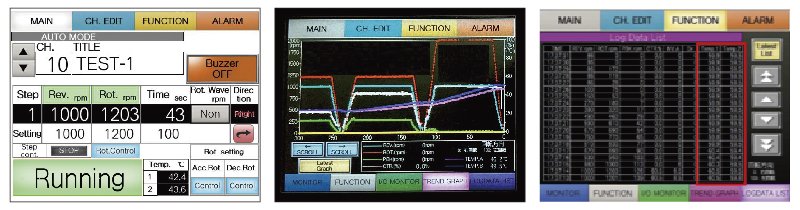

The Speeds of Revolution and Rotation, Temperature Rises, etc., can be Monitored Simultaneously

During operation, the speeds of revolution and rotation as well as temperature changes of the materials can be monitored simultaneously. This makes it easier for setting of optimum operating conditions according to material characteristics.

■ Specifications

Cup size 1100ml x 2cups
Various syringes of 100cc or less
Various barrels of 170cc or less
Max throughput 1kg x 2cups

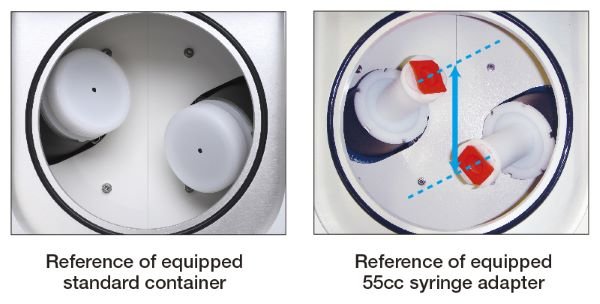

Other containers A variety of containers and syringes can be used by use of an adapter
Cup tray Straight: SK-1100TVIII
Shifted: SK-1100TVSIII
Speed of revolution Settable at 9 steps
Speed of rotation Settable at 10 steps
Settable time 10 ~ 900 sec. x 5 steps
* 5 steps totaling up to 25 min.
Step mode 5 steps
Continuous operation can be performed with 5 different types of operation patterns (condition settings)
Conditions setting memory User-settable channels 90 CH
Fixed data channels 10 CH
Power supply voltage Three-phase 200-240VAC±10%
Three-phase 385-415VAC±10%
50/60Hz
Power consumption 3.0kW
External dimensions W732 x D820 x H836 (mm) (except for the pump)
Weight of the main unit Approx. 260 kg (except for the pump) 　

* It differs machine throughput depending on materials characteristic.
* Revolving speed may change depending on materials characteristic.
* Detailed specification may change without prior notice.
