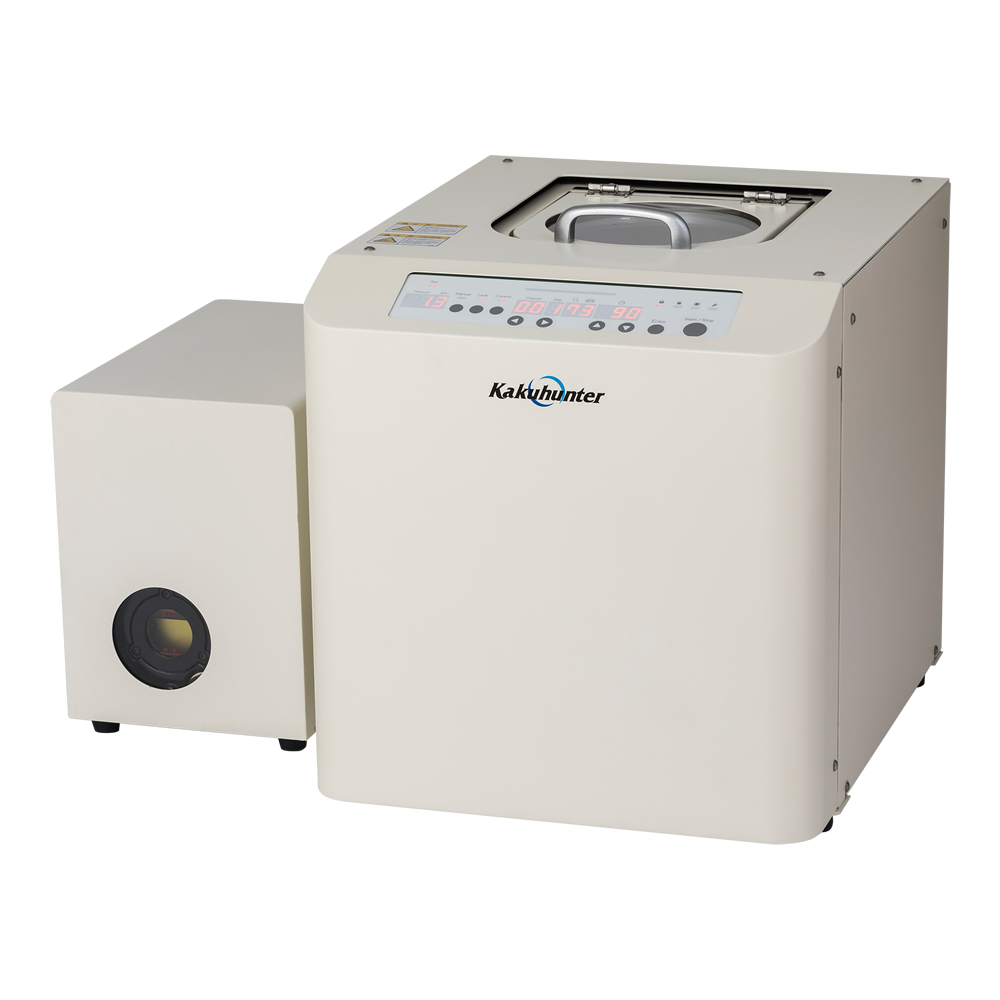

Kakuhunter SK-300TVS-A
· Model with a high functional vacuum reduced
pressure feature.
· By the individual revolution and rotation
speed control system and shifted cup tray
mechanism, the mixing ability is improved and
effective defoaming is realized.
Throughput
300ml (300g) x 2 cups
Function
-
- Individual Revolution and Rotation Speed Control System
-
- Step Operation
-
- Vacuum Reduced Pressure Function
-
- Shifted Cup Tray
· Want to mix and defoam small amounts of
materials for research and development.
· Want to mix and defoam high-viscosity
materials and materials that are different in
specific gravities.
· Want to vacuum-defoam fine bubbles.
Defoaming Ability Enhanced with a Vacuum Unit!
Finer bubbles can be removed, improving conductivity and insulation properties required for electronic materials, reducing the rate of defectives in products resulting from bubbles in optical materials, and preventing air shots from syringes due to air bubbles.

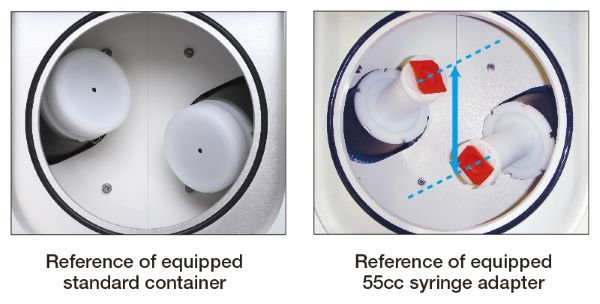

Mixing Ability Enhanced With the Adoption of Shifted Cup Trays on the Rotation Axis!
Since cup trays on the rotation axis are shifted to increase the contact surfaces between containers and materials, compared with the conventional machines (vertical cup trays), the mixing ability is enhanced and materials hardly form lumps. Furthermore, uniform mixing can be performed since long containers, such as barrels and syringes, can also be set, maintaining a distance from the revolution axis.
■ Specifications
| Cup size | 300ml x 2cups Various syringes of 55cc or less |
|
| Max throughput | 310g x 2cups | |
| Other containers | A variety of containers and syringes can be used by use of an adapter | |
| Speed of revolution | Settable at 9 steps | |
| Speed of rotation | Settable at 10 steps (However, there are some restrictions depending on the speed of revolution.) |
|
| Settable time | 25 min. max (as 5 steps in total) | |
| Step mode | 5 steps Continuous operation can be performed with 5 different types of operation patterns (condition settings) |
|
| Conditions setting memory | User-settable channels | 90 CH |
| Fixed data channels | 10 CH | |
| Power supply voltage | Single-phase 100-115VAC±10% Single-phase 200-230VAC±10% 50/60Hz |
|
| Power consumption | 1.5kw | |
| External dimensions | W445 x D555 x H495 (mm) (except for the pump) | |
| Weight of the main unit | Approx. 80 kg (except for the pump) | |
*Vacuum Pump Box is not included as an optional equipment.
* It differs machine throughput depending on materials characteristic.
* Revolving speed may change depending on materials characteristic.
* Detailed specification may change without prior notice.
Brochure DownloadFree
Includes product specifications and useful information that help you select a product.
The brochure may also be used with the Ringi system, etc.
Download a brochure from here (free)
* You will be redirected to a page on another domain managed by us.
