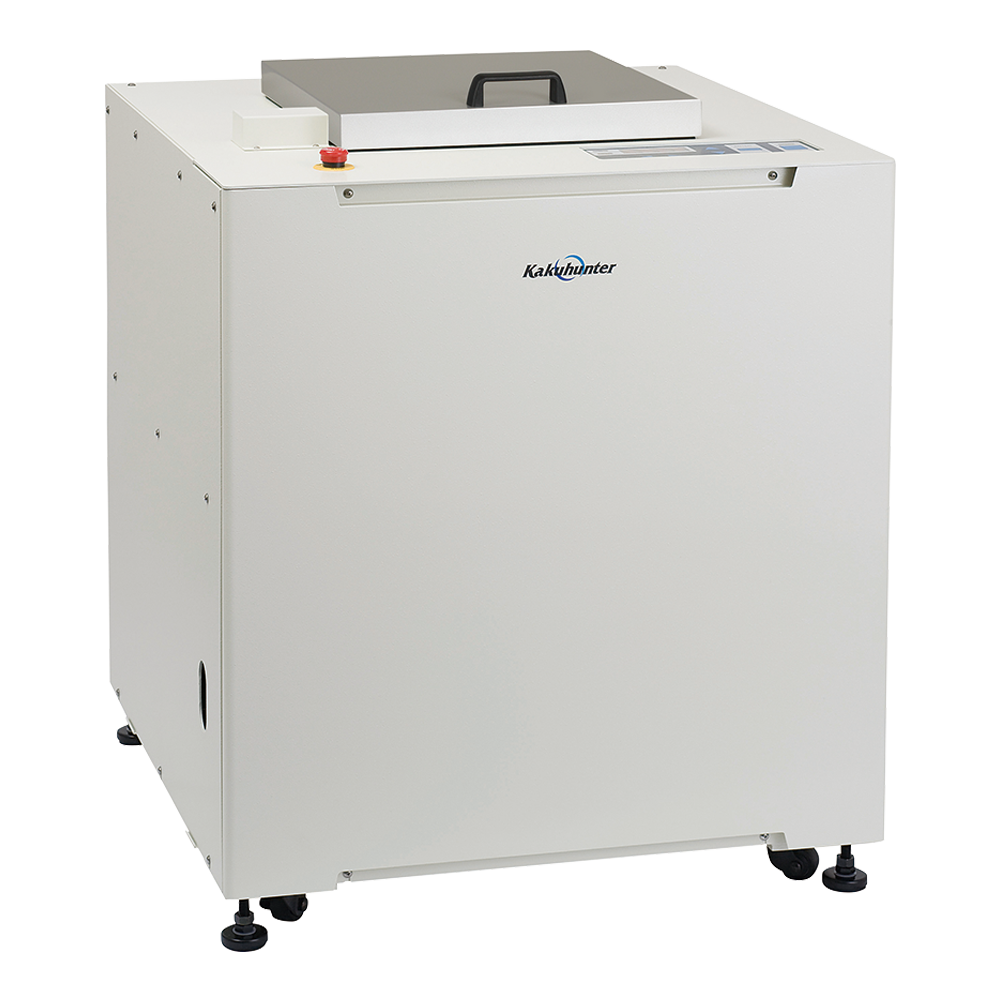

Kakuhunter SK-3000TII

· Production model capable of processing up to

　6kg materials high in specific gravity, due to

　the maximum 3kg x 2 cups system

· Since the radius gyration is wide and

　centrifugal forces can be obtained even at low

　speeds, compositional changes due to rising

　material temperatures are suppressed.

Throughput

2000ml (3kg) x 2 cups

Function

  • Individual Revolution and Rotation Speed Control System
    Individual Revolution and Rotation Speed Control System
  • Step Operation
    Step Operation

Click here for more details on customization.

Mode

  • T-mode Accelerated Dispersion
    Sustain lump and separation, then enhance dispersion.
  • F-mode Anti-separation
    Sustain separation for materials with different specific gravity.

· Want to mix and defoam high-viscosity

　materials and materials that are different

　in specific gravities.

· Want to mix and defoam a wide variety of

　materials with one unit.

■ Specifications

Cup size 2000ml x 2 cups
Max throughput 3kg x 2 cups
Other containers A variety of containers and syringes can be used by use of an adapter
Speed of revolution Settable at 9 steps
Speed of rotation Settable at 10 steps
Settable time 10 ~ 900 sec. x 5 steps
* 5 steps totaling up to 25 min.
Step mode

5 steps

Continuous operation can be performed with 5 different types of operation patterns (condition settings)
Conditions setting memory User-settable channels 90CH
Fixed data channels 10CH
Power supply voltage Three-phase 200-240VAC±10%
50/60Hz
Power consumption 3.0kW
External dimensions W726×D743×H860（㎜）
Weight of the main unit Approx. 270kg

* It differs machine throughput depending on materials characteristic.
* Revolving speed may change depending on materials characteristic.
* Detailed specification may change without prior notice.
