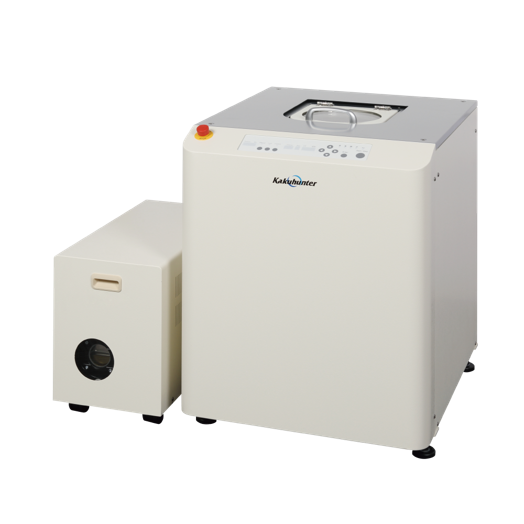

Kakuhunter  SK-350TV/TVS

· The mixing ability has been significantly
　enhanced while the features of our
　conventional machines remain the same!
· Debut of advanced function models equipped
　with the individual revolution and rotation
　speed control system!!

Throughput

400 ml (350g) x 2 cups

Function

  • Individual Revolution and Rotation Speed Control System
    Individual Revolution and Rotation Speed Control System
  • Step Operation
    Step Operation
  • Vacuum Reduced Pressure Function
    Vacuum Reduced Pressure Function

Click here for more details on customization.

Mode

  • F-mode Anti-separation
    Sustain separation for materials with different specific gravity.

· Want to mix and defoam small amounts of
　materials for research and development.
· Want to mix and defoam high-viscosity
　materials and materials that are different
　in specific gravities.
· Want to vacuum-defoam fine bubbles.

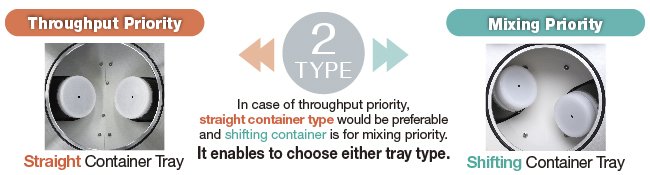

Two types of cup trays are available and can be selected according to purpose: straight (SK-350TV) and shifted (SK-350TVS).

While the straight type prioritizes the throughput, the shifted type improves the mixing ability as the contact surfaces between containers and materials are increased compared with the straight type.

* The effects differ with materials. You can choose either type according to your target throughput and mixing ability.

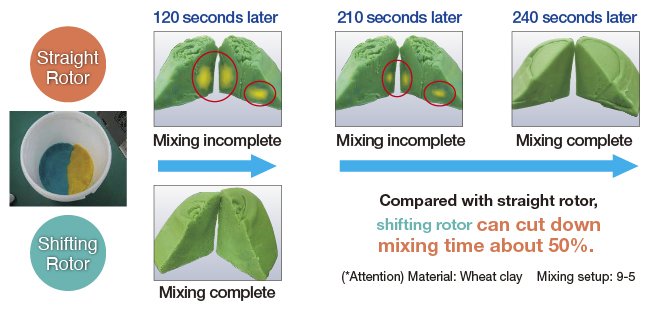

Comparison of mixing time (straight rotor vs shifted rotor)

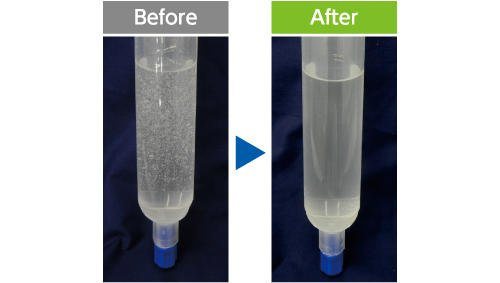

Defoaming ability enhanced with a vacuum unit!

Finer bubbles can be removed, improving conductivity and insulation properties required for electronic materials, reducing the rate of defectives in products resulting from bubbles in optical materials, and preventing air shots from syringes due to air bubbles.

■ Specifications

Cup size 400ml x 2cups
Max throughput 350g x 2cups
Other containers A variety of containers and syringes can be used by use of an adapter
Speed of revolution Settable at 9 steps
Speed of rotation Settable at 10 steps
Settable time 25 min. max (as 5 steps in total)
Step mode 5 steps
Continuous operation can be performed with 5 different types of operation patterns (condition settings)
Conditions setting memory User-settable channels 90 CH
Fixed data channels 10 CH
Power supply voltage Single-phase 200-240VAC±10%
50/60Hz
Power consumption 2.0kW
External dimensions W565 x D682 x H725 (mm) (except for the pump)
Weight of the main unit Approx. 260 kg (except for the pump)

* It differs machine throughput depending on materials characteristic.
* Revolving speed may change depending on materials characteristic.
* Detailed specification may change without prior notice.

Brochure DownloadFree

Includes product specifications and useful information that help you select a product.
The brochure may also be used with the Ringi system, etc.

Download a brochure from here (free)

* You will be redirected to a page on another domain managed by us.
