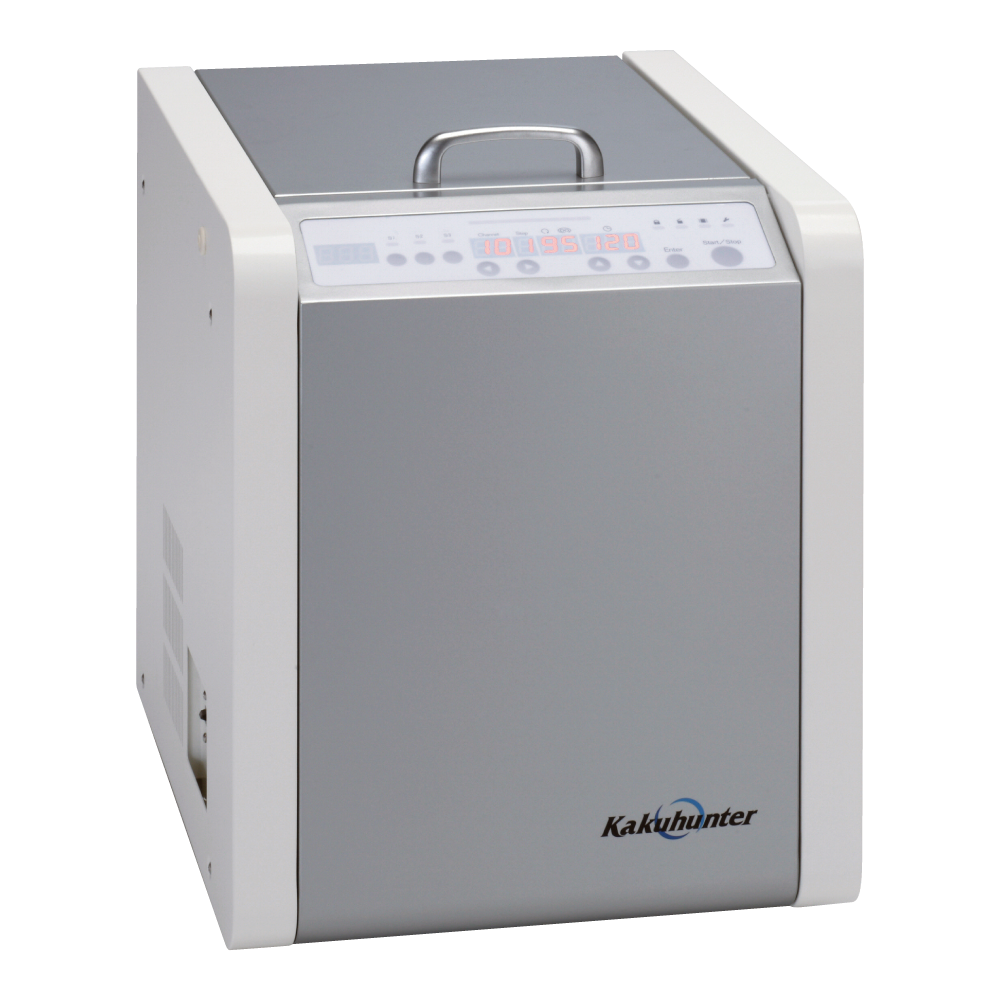

Kakuhunter SK-350TⅡ
· Variable ratio of revolution to rotation
realizing 90 rotational patterns
· Highly functional model that can be used for
research and development to small-
scale production
Throughput
400ml (350g) x 2 cups
Function
-
- Individual Revolution and Rotation Speed Control System
-
- Step Operation
Mode
-
- Sustain separation for materials with different specific gravity.
-
- High speed mode with degas priority
· Want to mix and defoam high-viscosity
materials and materials that are different in
specific gravities.
· Want to mix and defoam a wide variety of
materials with one unit.
Advanced functions are added to basic type of individual revolution and rotation speed control system
This model is equipped with a function that can set the speeds of revolution and rotation individually. Max. 700g* of materials can be mixed and defoamed with use of 400ml-capacity containers weighing up to 350g* in 2 cups.
The basic functions have been newly added with advanced functions: high speed mode and anti-separation mode that suppresses the separation of materials having different specific gravities, such as powder materials and liquids.
* The maximum weight differs with the properties of materials. Also, containers and adapters are included in the weight.
■ Specifications
|
Cup size |
400ml x 2cups Various syringes of 30cc or less |
|
|
Max throughput |
350g x 2cups | |
| Other containers | A variety of containers and syringes can be used by use of an adapter | |
| Speed of revolution | Settable at 9 steps | |
| Speed of rotation | Settable at 10 steps | |
| Settable time | Max 25 min. (total of 5 steps) | |
| Step mode |
5 steps Continuous operation can be performed with 5 different types of operation patterns (condition settings) |
|
| Conditions setting memory | User-settable channels | 90CH |
| Fixed data channels | 10CH | |
| Power supply voltage | Single-phase 100-120VAC±10% Single-phase 200-240VAC±10% 50/60Hz |
|
| Power consumption | 0.75kW/1.38kW | |
| External dimensions | W400×D482×H495（㎜） | |
| Weight of the main unit | Approx. 52kg | |
* It differs machine throughput depending on materials characteristic.
* Revolving speed may change depending on materials characteristic.
* Detailed specification may change without prior notice.
