About “Kakuhunter“

About “Kakuhunter“

It is a planetary centrifugal mixer that can solve your problems and meets your needs for any industry, for any material, and for any application.

“First, what is a mixer?”

Simultaneous mixing and defoaming!
For diverse range of materials!
For high-precision mixing!

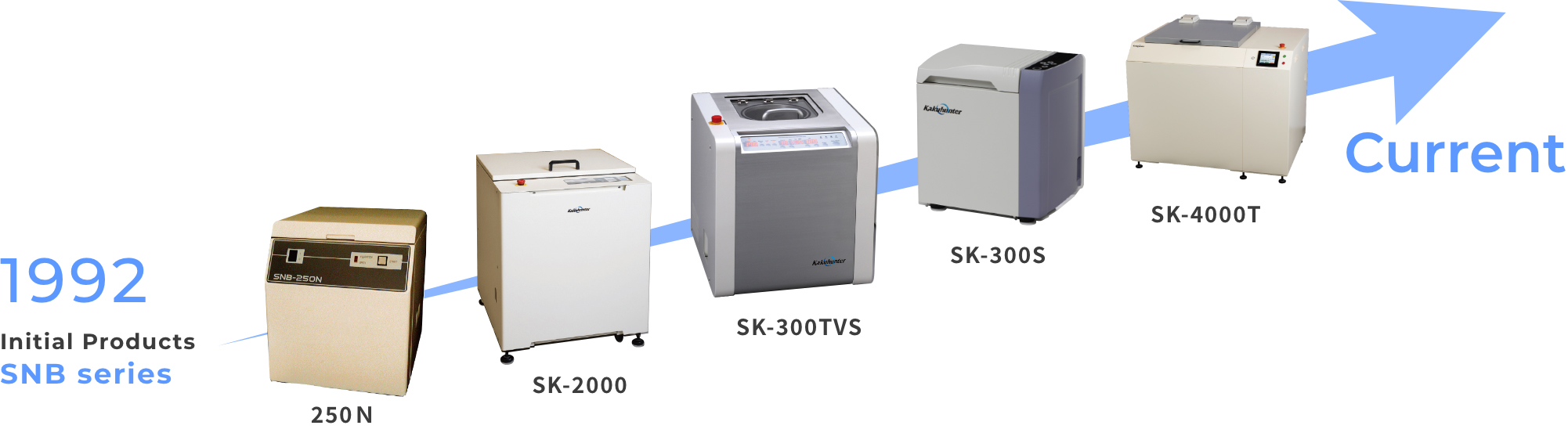

Development History

In the 1990s, with the miniaturization of electronic components, there was a demand for precise mixing of electronic materials and high-precision defoaming of bubbles mixed in during mixing.
In order to meet the needs, we began developing an industrial planetary centrifugal mixer with excellent versatility and durability that enables precise simultaneous mixing and defoaming. In 1992, we launched “the SNB Series (now known as Kakuhunter),” a high-spec planetary centrifugal mixer equipped featuring the first Individual Revolution and Rotation Speed Control system.
The most significant challenge during development was “what the ratio of revolution to rotation should be.” Initially, we started development with two motors, but then we moved on to developing a variable ratio function with one motor to create a machine with a wide range of revolution and rotation speed settings. Since then, we have developed a large-sized machine with improved throughput, a vacuum unit type with an improved defoaming effect, and a compact entry model to meet market needs.
Through research and development each and every day, Kakuhunter continues to pursue new value.

01Features
02Applications
03Unique Functions and Operation Settings

01Features

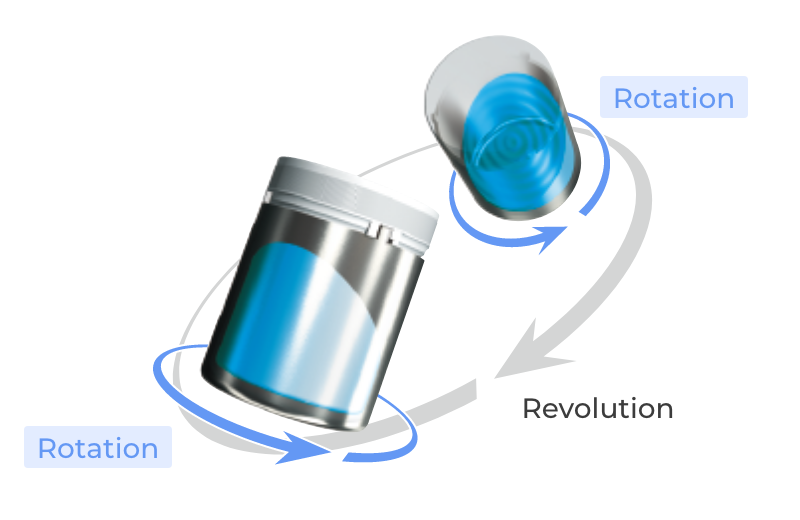

Kakuhunter’s Mixing Mechanism

Kakuhunter is capable of uniform mixing and fine defoaming for a diverse range of materials from low viscosity to high viscosity.

With the bubble breaking effect by the shearing force and material film forming action created by the combination of revolution and rotation, simultaneous processing of precise mixing and defoaming can be performed in a short time.

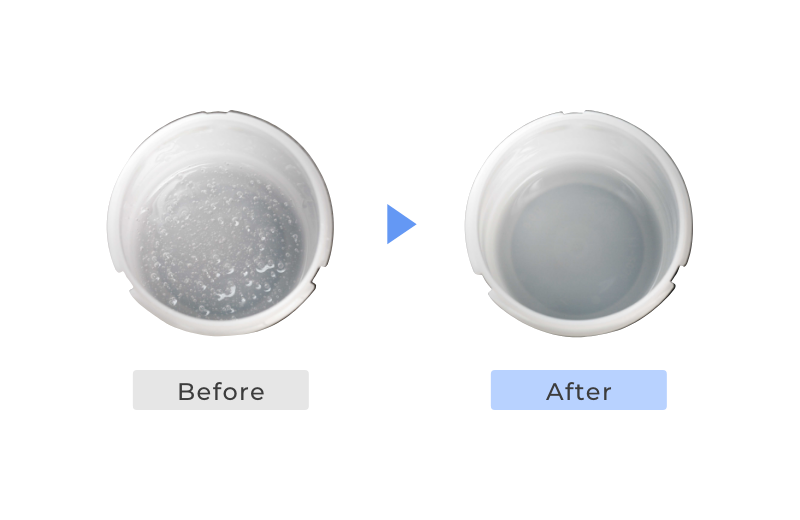

Defoaming is performed by the bubble breaking effect by the centrifugal force of revolution and film formation between container sidewalls and materials. Countless fine bubbles in high-viscosity materials can be defoamed precisely by applying vacuum reduced pressure.

Details about
the MechanismMORE

Differences from Other Methods than Revolution-rotation Type

Other major mixing methods include “propeller type,” “roll type,” and “roller type,” but they have various problems such that: “mixing requires a lot of time;” “materials are damaged;” “precision mixing cannot be performed;” “there is a need for cleaning;” and “defoaming cannot be performed.” On the other hand, the revolution-rotation type can uniformly mix and completely defoam a diverse range of materials whatever their viscosity as both the container and the machine are sealed, causing no foreign matter to be mixed in, with no damage to materials, where continuous work accompanied by material changes can also be performed smoothly.

Comparison with Other Mixing and Defoaming MethodsMORE

Six Major Features of the Revolution-Rotation Type “Kakuhunter”

Feature01

Short-time Mixing Capability

All sorts of materials from low viscosity to high viscosity can be mixed and defoamed in just a few tens of seconds to a few minutes
Feature02

Simultaneous Processing of Defoaming

Defoaming is performed by the centrifugal force of revolution and with the bubble breaking effect by film formation between container sidewalls and materials
Feature03

No Damage Caused to Materials

The planetary centrifugal mixer does not cause damage to materials since there is no contact between the machine and materials.
Feature04

Suppression of Temperature Rises

Temperature rises by mixing can be suppressed by optimizing the operation pattern.
Feature05

Easy Cleaning of the Machine

Since there is no propeller, there is no need for cleaning of the machine body and no loss of materials.
Feature06

User-friendly Operation Screen

Operation settings can be easily made by using the up/down and right/left keys on the control panel only.

02Applications / Capabilities

Can be used across a wide range of fields, for wide-ranging applications, and a diverse range of materials

Kakuhunter has been dramatically improved in the precision of mixing, dispersing, and defoaming in step with technological advances in the market. Therefore, it can be used for mixing and defoaming a wide range of materials in various industrial fields whatever their applications may be.

Field Examples

Electronic Materials
- Sealing materials
- Coating materials
- Conductive pastes
- Insulating pastes
- Solders
- Adhesives
- Printed circuit boards
- Circuit substrates
Chemical Materials
- Carbon nanotubes
- Carbon fibers
- Carbon blacks
- Ceramics
- Urethane resins
- Silicone resins
- Acrylic resins
Energy Materials
- Fuel batteries
- Electrode materials
- All-solid-state batteries
- Secondary batteries
- Solar panels
Automobile-related Materials
- EVs
- Batteries
- Fuel batteries
- Tires
- Greases
- Adhesives
- Heat radiating materials
- Paints
Medical Materials
- 3D shaping
- Dental materials
- Endoscopes
Semiconductor-related Materials
- Ceramic members
- Adhesives
- Machine parts
- Transfer machine parts
Imaging-related Materials
- Organic EL displays
- Liquid crystal displays
- LED displays
Cosmetic Materials
- Foundations
- Lipsticks
- Nail polishes
- Eyeshadows
- Hair colorings

Application Examples

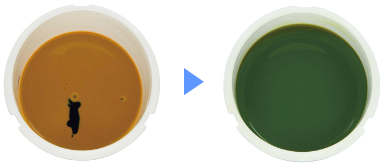

Mixing

Material: Printing ink

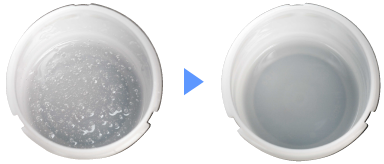

Defoaming

Material: High-viscosity adhesive

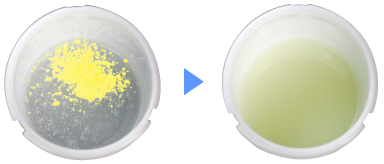

Dispersing

Material: Fluorescent powder + Resin

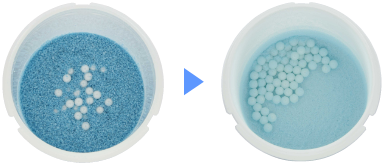

Crushing

Material: Colored stone
(Zirconia balls used)

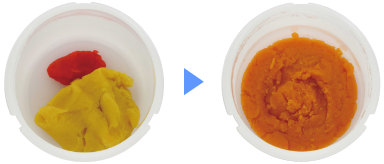

Kneading

Material: Clay

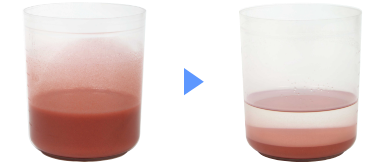

Separating

Material: Adhesive + Colored stone

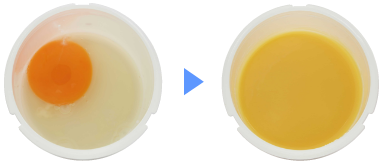

Emulsifying

Material: Egg + Oil + Vinegar

Compatible with various cases

Introduction ExamplesMORE

03Unique Functions / Operation Settings

Individual Revolution and Rotation Speed Control System

The performance results of mixing and defoaming vary greatly depending on the ratio of revolution to rotation, respective speeds, and combination of step operations, etc. Kakuhunter can change the ratio of revolution to rotation and set up to 90 rotational patterns. In conventional models, the ratio of rotation is fixed, and even if the speed of revolution is adjusted, there are issues such as a failure in mixing and formation of lumps. On the other hand, Kakuhunter can be set to 9 revolution steps and 10 rotation steps, making it possible to solve issues with fixed rotation ratio types.

The Advantages of Variable RotationMORE

Examples of Other Unique Functions and Operation Settings

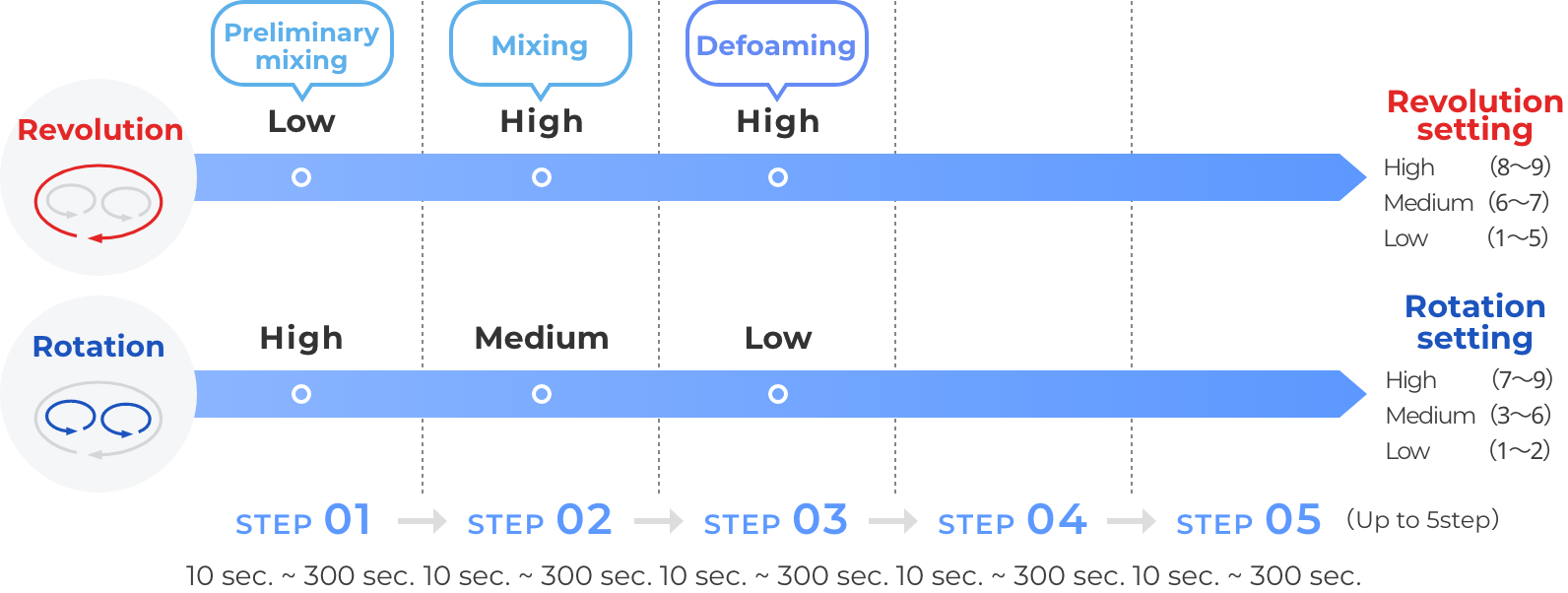

Step Operation

Step operation enables continuous running of multiple different operation patterns.
Step operation can be set for each model to meet various mixing and defoaming needs.
Special Mode
Depending on the machine, special modes compatible with materials can be selected.
Liquids and powders are blended together, then suppress the formation of lumps.

Aggregation and separation are suppressed to accelerate dispersion.

The rotation speed is increased and decreased to accelerate mixing.

The rotation speed is decreased to the minimum to remove fine bubbles.

The separation of materials with specific gravity differences is suppressed.

Gives priority to defoaming at high speed.

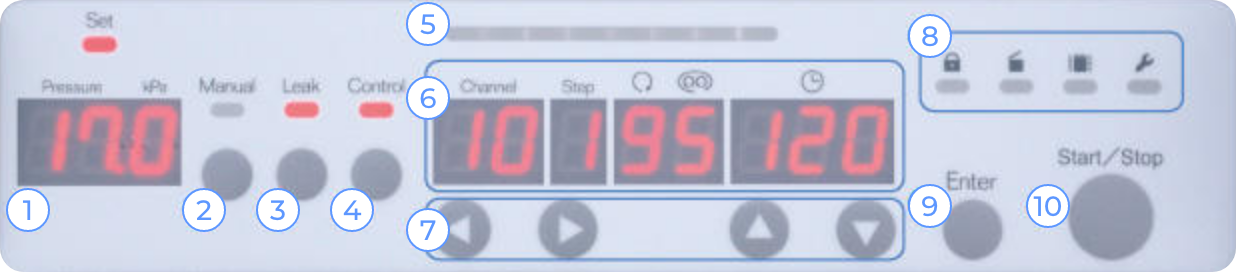

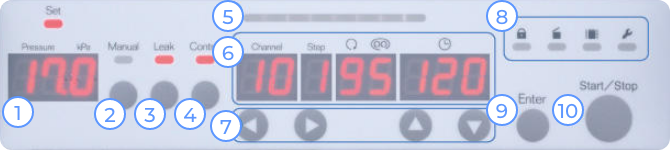

User-Friendly Control Panel
With its innovative design and user-friendly control panel, it contributes to efficient mixing and defoaming across a wide range of situations, from research and development to mass production.
1. Vacuum Level Display Section
2. Vacuum Manual Switch
3. Vacuum Breaking Valve Switch
4. Vacuum Control Valve Switch
5. Progress Bar
6. Channel / Step / Revolution
  Display of data such as rotation time error
7. Data Setting Switch
8. Precaution (icon) Lamp
  · Mishandling Prevention Key Lock
  · Cover Open
  · Vibration
  · Maintenance
9. Data Determination / Error Reset Switch
10. Start / Stop Switch

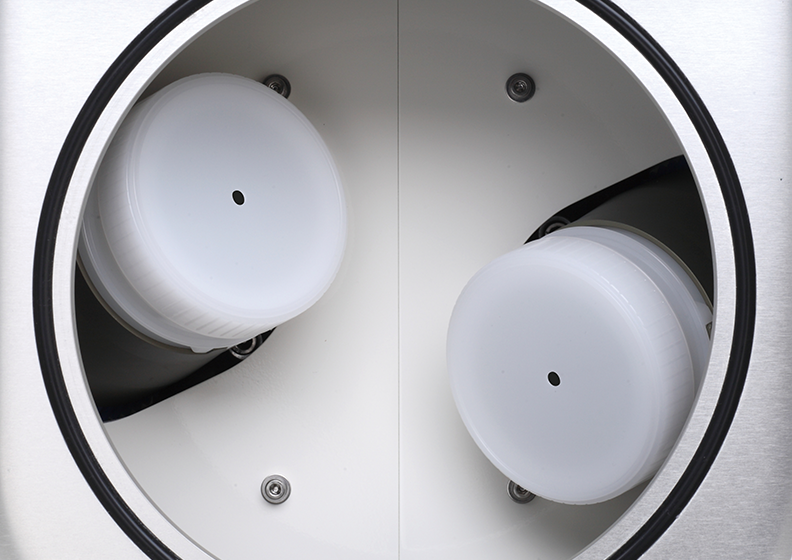

Vacuum Reduced Pressure Function

The vacuum reduced pressure function makes it possible to eliminate even ultrafine air bubbles from the materials; therefore, this function can improve the conductivity and insulation properties required for electronic materials, improve the yield rate by removing bubbles in optical materials, and prevent the injection of air owing to air bubbles in syringes.
In addition, by placing a vacuum pump separately, we offer multiple options and improved maintenance efficiency.

Only during vacuum pressure reduction operation is the vacuum chamber shut off, and only the rotor part is depressurized.

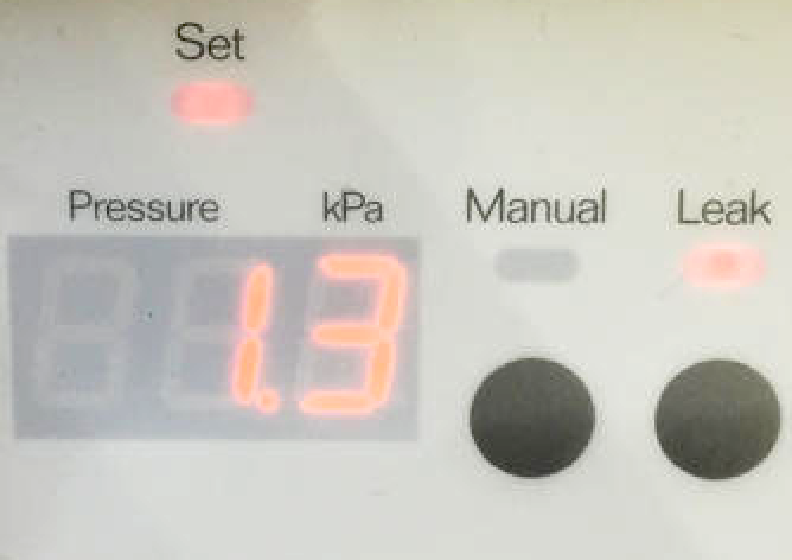

The vacuum can be set arbitrarily (up to 1.3 kPa) while the vacuum pressure reduction is monitored.

* This machine can also be used as a vacuum desiccator without rotating.
Vacuum Control System
On Delay

By delaying the timing to draw a vacuum, temperature increases and changes in material composition can be suppressed.

Scattering of fine powders when mixing fine powder and liquid is suppressed to prevent powder adhesion to the container lid, insufficient mixing, and insufficient dispersion.
Off Delay

By delaying the timing at which vacuum operation is terminated, bubble entrainment until rotation stops can be eliminated and defoaming precision can be improved.

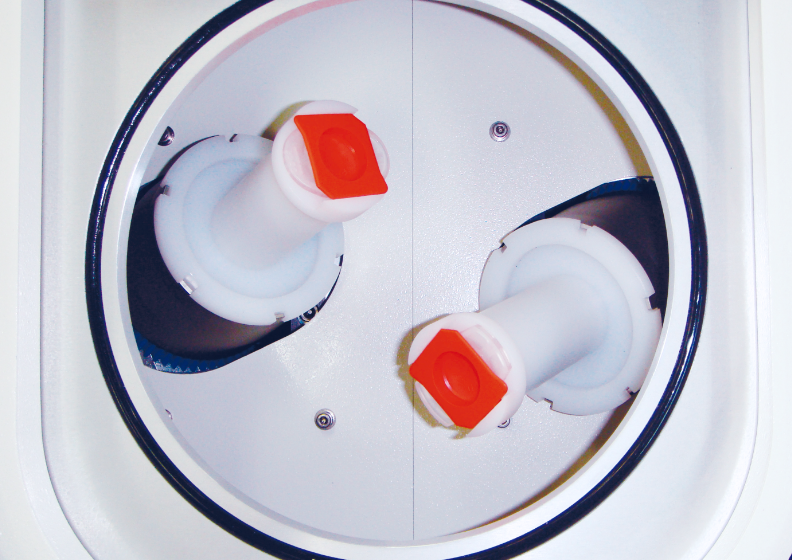

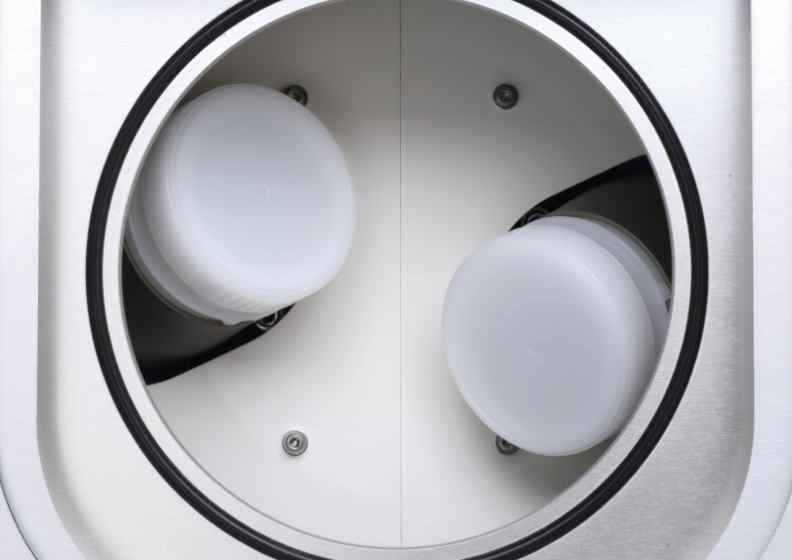

Shifted Cup Tray

Mixing Ability Improved with the Adoption of Shifted Cup Trays on the Rotation Axis!

Since cup trays on the rotational axis are shifted to increase the contact surfaces between containers and materials, compared with conventional machines (cup tray facing), mixing performance is improved.
Furthermore, effective mixing can be performed since long containers can also be set, maintaining a distance from the revolution axis to apply centrifugal forces to the whole.

Comparison of mixing time (straight rotor vs shifted rotor)

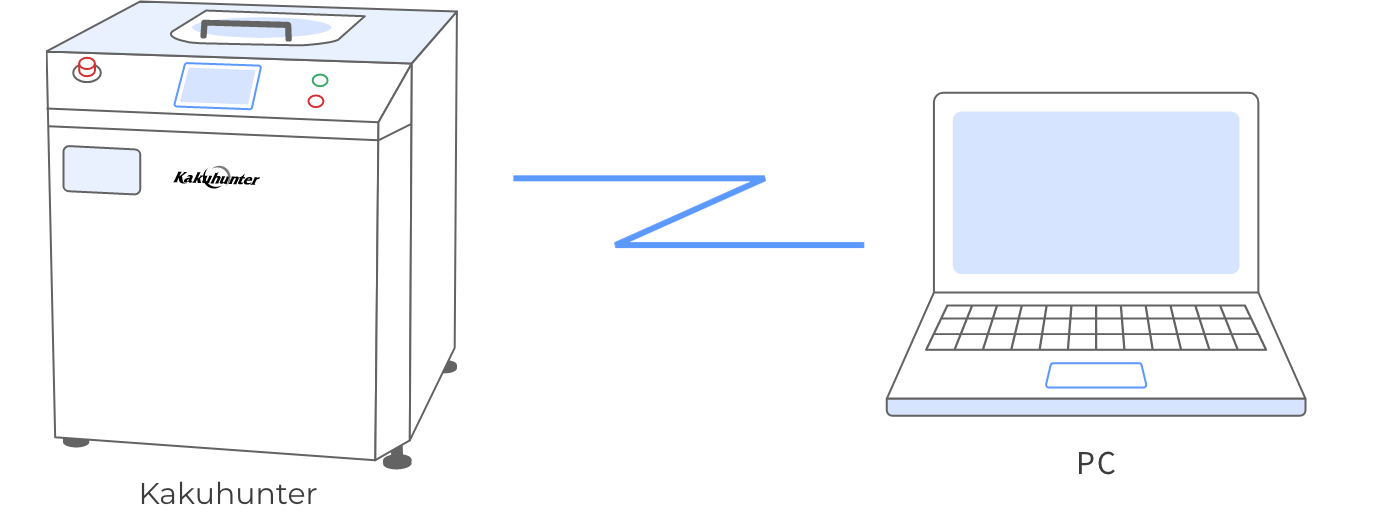

Communication Function

Operation data such as operating time, mixing conditions, and temperatures can be saved and used for traceability.

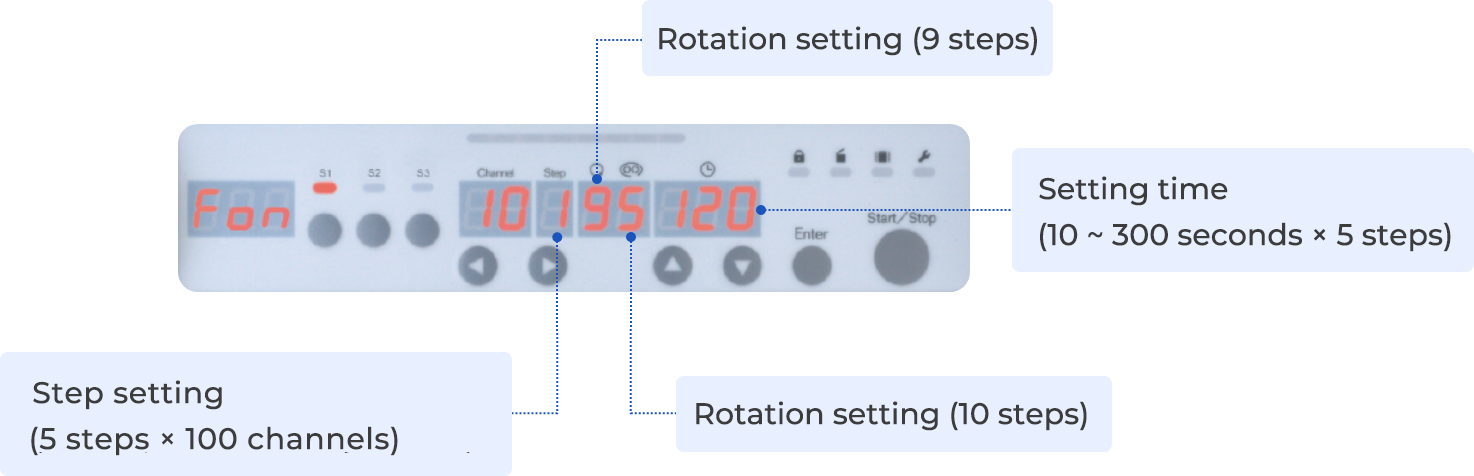

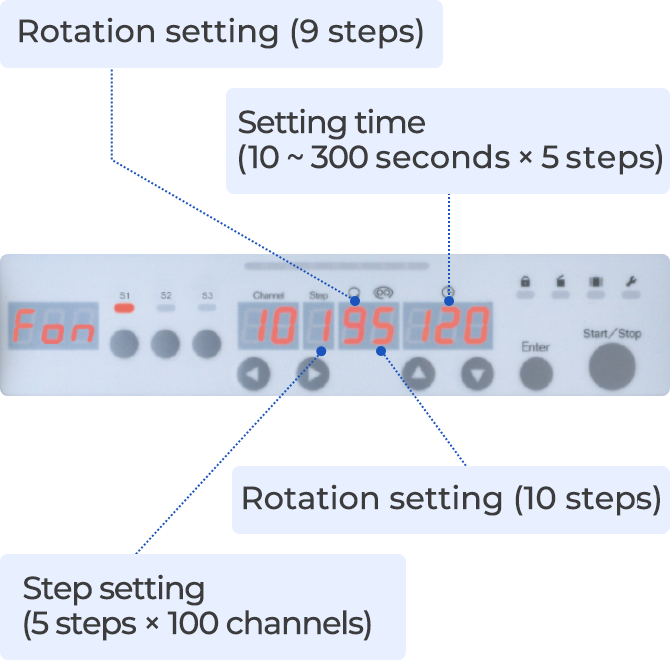

Optimum Settings

The rotational speed can be set to 9 steps for revolution and 10 steps for rotation, and 90 patterns can be made by combining both.
As a memory channel (conditions setting memory), it is possible to set 90 user-settable channels and 10 fixed data channels, which contributes to efficient mixing and defoaming across a wide range of situations, from research and development to mass production.
