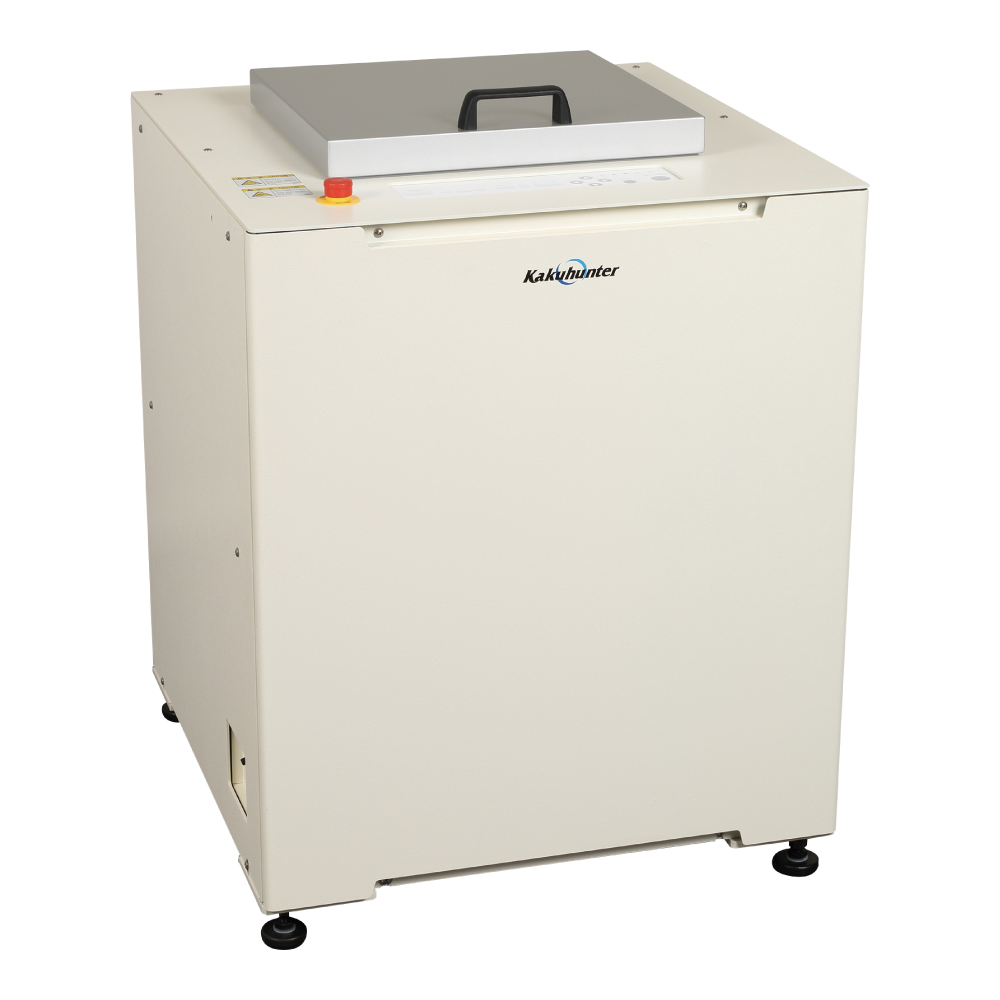

Kakuhunter SK-2000T

· Max throughput 2kg x 2 cups

· Made-to-order mixer compatible with your

　containers.

· Maximum container size: 150mm in diameter,

　170mm in height.

· Combination use of adapters enables setting

　multiple containers, and the loss of materials

　is reduced by selecting containers according

　to production.

· With no adapters, throughput can be ensured.

Throughput

2000ml (2kg) x 2 cups

Function

  • Individual Revolution and Rotation Speed Control System
    Individual Revolution and Rotation Speed Control System
  • Step Operation
    Step Operation

Click here for more details on customization.

Mode

  • L-mode Anti-aggregation
    Mixing power and liquid, then avoid to occur lump condition.
  • P-mode Waving Rotation
    Rotation speed creates up and down like wave, which enhances mixing force.
  • D-mode Micro-rotation
    Due to slight move of revolution, which enables to eliminate micro fine bubbles.

· Want to mix and defoam high-viscosity

　materials and materials that are different

　in specific gravities.

· Want to mix and defoam a wide variety of

　materials with one unit.

■ Specifications

Cup size User designated (up to approx. 2000ml x 2 cups)
Max throughput 2kg x 2 cups
Other containers A variety of containers and syringes can be used by use of an adapter
Speed of revolution Settable at 9 steps
Speed of rotation Settable at 10 steps
Settable time 10 ~ 900 sec. x 5 steps
* 5 steps totaling up to 25 min.
Step mode

5 steps

Continuous operation can be performed with 5 different types of operation patterns (condition settings)
Conditions setting memory User-settable channels 90CH
Fixed data channels 10CH
Power supply voltage Three-phase 200-240VAC±10%
Three-phase 385-415VAC±10%
50/60Hz
Power consumption 2.5kW
External dimensions W646×D663×H851（㎜）
Weight of the main unit Approx. 225kg

* It differs machine throughput depending on materials characteristic.
* Revolving speed may change depending on materials characteristic.
* Detailed specification may change without prior notice.
