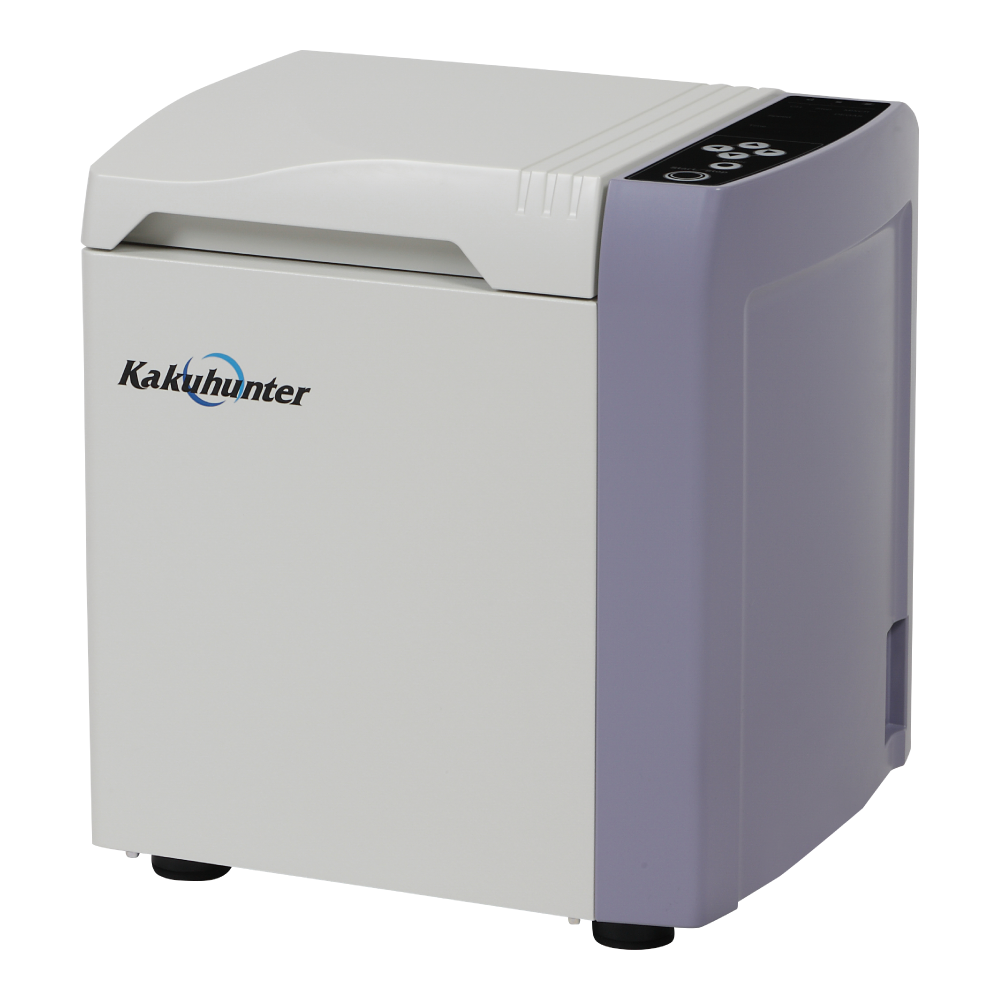

Kakuhunter SK-300SⅡ

SK-300SII’s Unique Mechanism

■ Medium Mode
　Generation of heat from mixing is suppressed

　by lowering the ratio of rotation from the

　conventional mixing mode, and materials that

　are sensitive to temperature rises can also be

　processed.

■ Wave Mode
　Mixing / dispersing can be performed more

　smoothly and effectively by accelerating and

　decelerating the speeds of revolution and

　rotation.

Throughput

300ml (310g) x 1 cup

Function

  • Fixed ratio for revolution-rotation
    Fixed ratio for revolution-rotation
  • Step Operation
    Step Operation

Click here for more details on customization.

Mode

  • P-mode Waving Rotation
    Rotation speed creates up and down like wave, which enhances mixing force.

· Want to mix and defoam high-viscosity

　materials and materials that are different in

　specific gravities.

· Want to mix and defoam a wide variety of

　materials with one unit.

Mode Setting According to Application

For the SK-300SII, the medium mode is newly added to the conventional “mixing mode / defoaming mode.”
While easy operation remains unchanged, it is now possible to select modes to suit a  wider range of applications and materials.

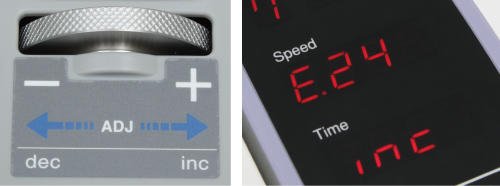

Equipped with a Balance Navigation Function

The balance can be adjusted easily by unbalance detection and the balance navigation function.

Compatible with 300ml Containers / Max. 310g

While the machine is compact, processing of 300ml containers weighing a maximum of 310g (gross weight) can be processed!!

Fully Safe Design

The safety-conscious design includes mechanisms to lock the top lid during operation, to prevent operation when the top lid is open, and to prevent malfunctions.
In addition, you can use the machine with peace of mind thanks to the comprehensive alarm/notification functions, including unbalance detection, motor abnormality, and maintenance.

■ Specifications

Cup size 300ml x 1 cup
Various syringes of 30cc or less
Max throughput 310g x 1 cup
Other containers A variety of containers and syringes can be used by use of an adapter
Speed of revolution Mixing mode 200～2000rpm
* Medium mode 200～2000rpm
Defoaming mode 400～2200rpm
Speed of rotation Mixing mode Follow-up at 40% with respect to the revolution
* Medium mode Follow-up at 20% with respect to the revolution
Defoaming mode Follow-up at 3% with respect to the revolution
Settable time Max 30 min. (total of 9 steps)
Step mode 9 steps
Continuous operation can be performed with 9 different types of operation patterns (condition settings).
Conditions setting memory User-settable channels 7 CH
Fixed data channels 3 CH
Power supply voltage Single-phase 100-120VAC±10%
Single-phase 200-240VAC±10%
50/60Hz
Power consumption 0.4 kW/1.38kW
External dimensions W340×D315×H370（mm）
Weight of the main unit Approx. 24kg

: Above descriptions may change without notice.
＊・Medium mode/Wave mode are exclusively for SK-300SII.
・Wave mode has revolving speed limitation ( Revolution: 1,000-1,790 rpm/ Rotation: about 400-716rpm)
