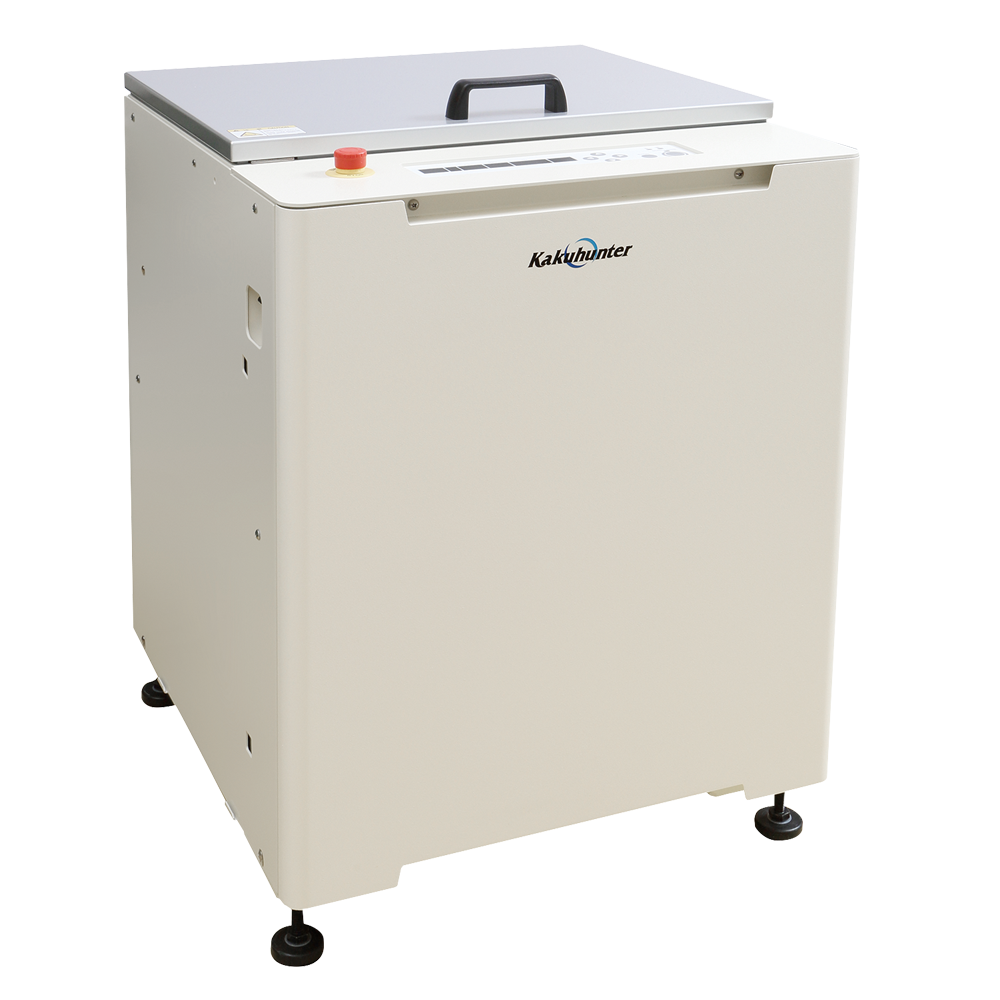

Kakuhunter SK-1100T

· Production model capable of processing high-

　quality materials, combining high rotation

　and wide radius gyration.

· Lump forming is suppressed through the

　improvement of the mixing rate of powder and

　liquid by controlling the rotation speed-up

　timing.

Throughput

1100ml (1kg) x 2 cups

Function

  • Individual Revolution and Rotation Speed Control System
    Individual Revolution and Rotation Speed Control System
  • Step Operation
    Step Operation

Click here for more details on customization.

Mode

  • T-mode Accelerated Dispersion
    Sustain lump and separation, then enhance dispersion.
  • F-mode Anti-separation
    Sustain separation for materials with different specific gravity.

· Want to mix and defoam high-viscosity

　materials and materials that are different in

　specific gravities.

· Want to mix and defoam a wide variety of

　materials with one unit.

■ Specifications

Cup size 1100ml x 2cups
Various syringes of 100cc or less
Various barrels of 170cc or less
Max throughput 1kg x 2cups
Other containers A variety of containers and syringes can be used by use of an adapter
Speed of revolution Settable at 9 steps
Speed of rotation Settable at 10 steps
Settable time Maximum 25 minutes  (5 step total)
Step mode

5 steps

Continuous operation can be performed with 5 different types of operation patterns (condition settings)
Conditions setting memory User-settable channels 90CH
Fixed data channels 10CH
Power supply voltage Single-phase 200-240V
50/60Hz
Power consumption 2.0kW
External dimensions W565×D597×H741（㎜）
Weight of the main unit Approx. 140kg

* It differs machine throughput depending on materials characteristic.
* Revolving speed may change depending on materials characteristic.
* Detailed specification may change without prior notice.

Brochure DownloadFree

Includes product specifications and useful information that help you select a product.
The brochure may also be used with the Ringi system, etc.

Download a brochure from here (free)

* You will be redirected to a page on another domain managed by us.

Inquiry Form

Introduction Examples

We want to uniformly disperse different types of powder in a base material. We want to defoam high-viscosity gels without applying temperature. Mixing and defoaming with near-zero contamination! Uniform Dispersion of Titanium Oxide, etc.Defoamin… We want to defoam small amounts of samples for research and development applications. Mixing and defoaming even with amounts as small as 1cc or 2cc! Mixing and defoaming small amounts of samples in v… We want to process one batch in a 1L size at a time. Suitable for medium capacity! Covered by medium size. Quick high-precision dispe… We want to perform dispersing, defoaming, and separating with one unit. Multiple Processes Resolved with One Unit! Carbon materials can be dispersed and defoamed wit… We want to defoam while in syringes Powerful centrifugal × vacuum defoaming! Air bubbles having entered syringes are defoamedAd… We want to uniformly disperse fillers and resins having different specific gravities, without significantly increasing the temperatures of materials. Suppression of heat generated during dispersion! Uniform dispersion of resins + fillers (diamond, g… Although mixing can be performed by the current method, air bubbles are generated and several hours are required for the bubbles to dissipate. Substantial improvement in work efficiency! Defoaming of high-viscosity paints performed in a … We want to continue using designated bottles for mass production Compatible with customer-designated containers! High-precision uniform dispersion at a mass-produc…
