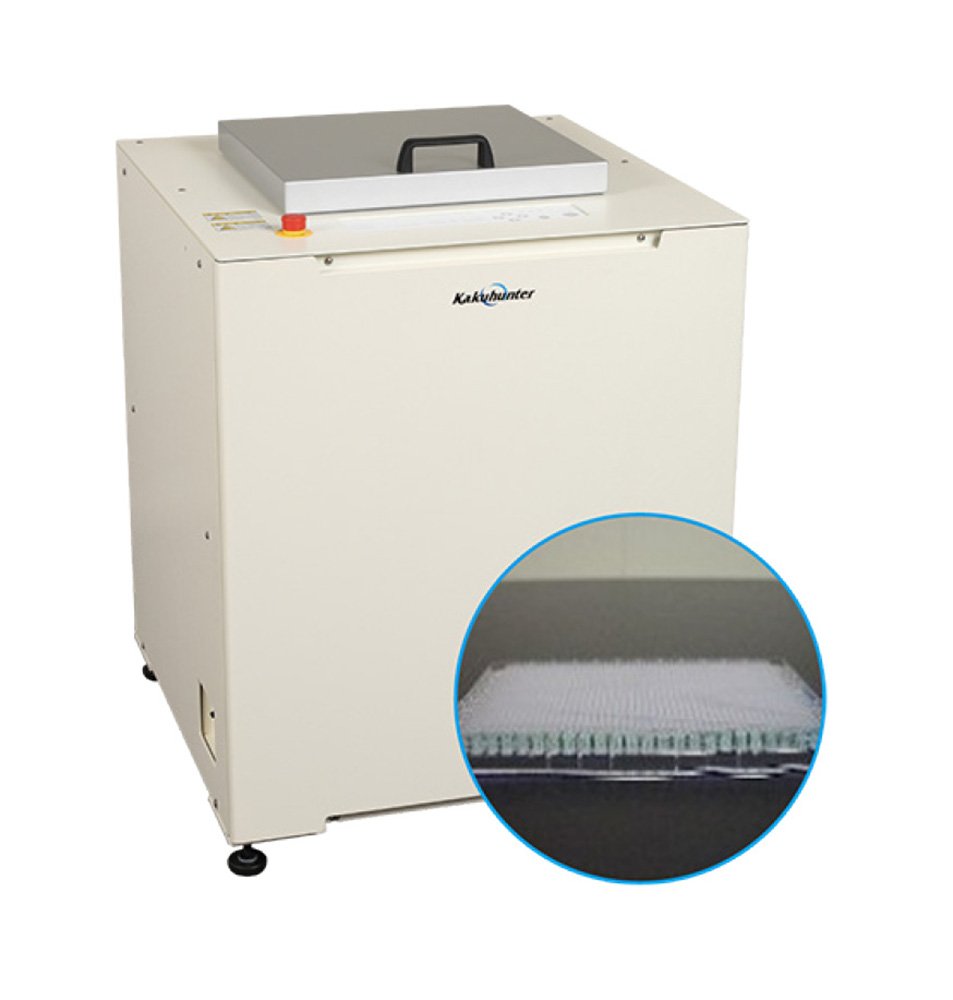

Kakuhunter SK-MP12T

High-speed processing of uniform mixing of samples in microplates and removal of fine air bubbles at high speed. Contributes to improving the reliability of measurement results.

· Enables setting multiple microplates, realizing

　uniform mixing and removal of fine

　air bubbles simultaneously in a short time.

· Can perform mixing and defoaming of not only

　18-well and 96-well but also 384-well and

　1536-well full-size microplates using

　dedicated adapters.

· Capable of mixing and defoaming of

　microtubes and culture tubes by preparing

　adapters (option).

· Spins down droplets from up to 12 PCR plates

　and microplates at the same time.

Throughput

2kg x 2 cups

Function

  • Individual Revolution and Rotation Speed Control System
    Individual Revolution and Rotation Speed Control System
  • Step Operation
    Step Operation

Click here for more details on customization.

Mode

  • L-mode Anti-aggregation
    Mixing power and liquid, then avoid to occur lump condition.
  • P-mode Waving Rotation
    Rotation speed creates up and down like wave, which enhances mixing force.
  • D-mode Micro-rotation
    Due to slight move of revolution, which enables to eliminate micro fine bubbles.

　· Want to mix samples in microplates.
　· Want to remove fine air bubbles.
　· Want to mix and defoam with microtubes
　　and culture tubes.

Main Applications

· Mixing of cell culture solutions
　· Mixing of various biochemical assay solutions
　· Blending of beads, solvents, and reagents
　· Best suited for pretest defoaming and spinning down
　· Massive screening, etc.
　· Best suited for mixing and defoaming of PCR (polymerase chain reaction) tubes, PCR tube plates,
　　and various other test tubes

Microplate

Microtube

■ Specifications

Cup size 6 plates x 2 (10 in the case of 384-well microplates)
Max throughput 2kg x 2 cups
Speed of revolution Settable at 9 steps
Speed of rotation Settable at 10 steps
Settable time 1 ~ 900 sec. x 5 steps * 5 steps totaling up to 25 min.
Step mode

5 steps

Continuous operation can be performed with 5 different types of operation patterns (condition settings)
Conditions setting memory User-settable channels 90 CH
Fixed data channels 10 CH
Power supply voltage Three-phase 200-240VAC±10%　Three-phase 385-415VAC±10%
Power consumption 2.5kW
External dimensions W646×D663×H851 (mm)
Weight of the main unit Approx. 225kg

* It differs machine throughput depending on materials characteristic.
* Revolving speed may change depending on materials characteristic.
* Detailed specification may change without prior notice.
