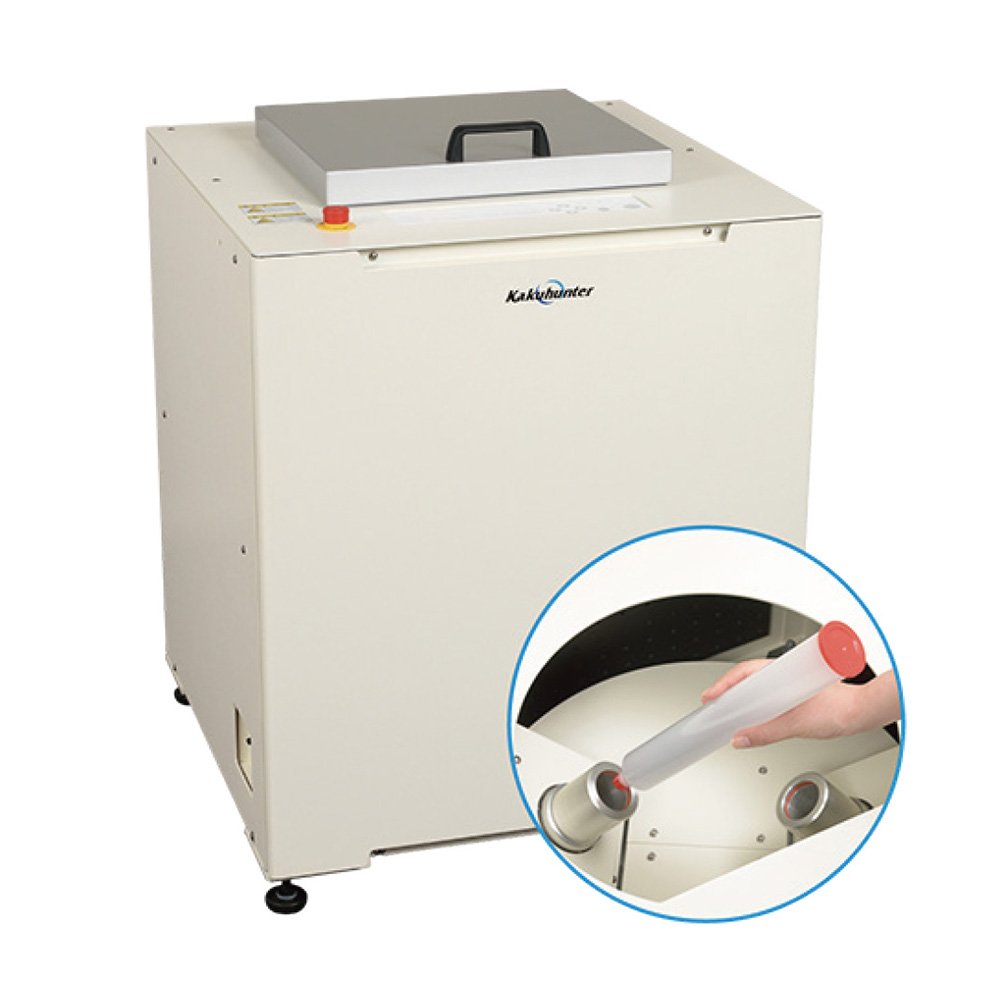

Kakuhunter SK-BS12T
Barrel / syringe-specific planetary centrifugal mixer that enables setting 12 oz barrels (360ml) and 6 oz (180ml) barrels.
· By the individual revolution and rotation
speed control system, uniform mixing of
materials and removal of fine air bubbles are
realized in a short time.
· By using barrels (12 oz, 6 oz) properly
according to production volume, productivity
and workability can be improved.
* For use of 6 oz barrels, dedicated adapters
(spacers) are required.
Throughput
2kg x 2cups
Function
-
- Individual Revolution and Rotation Speed Control System
-
- Step Operation
Mode
-
- Rotation speed creates up and down like wave, which enhances mixing force.
-
- Due to slight move of revolution, which enables to eliminate micro fine bubbles.
-
- Mixing power and liquid, then avoid to occur lump condition.
· Have trouble in mixing materials that are
different in specific gravities.
· Want to defoam air bubbles that occur during
transfer from other containers.
· Fail in quantitative discharge due to air
bubbles remaining in syringes.
· Do not want to break the composition of
materials with a mixing rod or propeller.
· In addition, want to eliminate the loss of
materials.

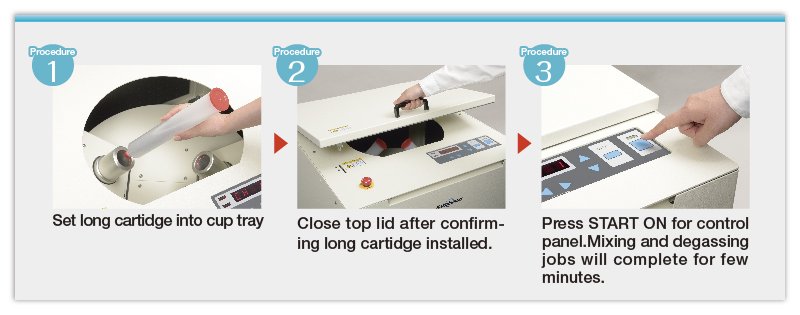

■ Operating Method
Issues arising in quantitative discharge with a dispenser are resolved all at once!
▶ Air bubbles in syringes can be efficiently defoamed to improve the filling accuracy.
■ Specifications
| Cup size | 12oz, 6oz Long cartridge x 2pcs |
|
| Max throughput | 2kg x 2 cups | |
| Speed of revolution | Settable at 9 steps | |
| Speed of rotation | Settable at 10 steps | |
| Settable time |
1 ~ 900 sec. x 5 steps * 5 steps totaling up to 25 min. |
|
| Step mode |
5 steps Continuous operation can be performed with 5 different types of operation patterns (condition settings) |
|
| Conditions setting memory | User-settable channels | 90 CH |
| Fixed data channels | 10 CH | |
| Power supply voltage |
Three-phase 200-240VAC±10% Three-phase 385-415VAC±10% 50/60Hz |
|
| Power consumption | 2.5kW | |
| External dimensions | W646×D663×H851 (mm) | |
| Weight of the main unit | Approx. 225kg | |
* It differs machine throughput depending on materials characteristic.
* Revolving speed may change depending on materials characteristic.
* Detailed specification may change without prior notice.
Brochure DownloadFree
Includes product specifications and useful information that help you select a product.
The brochure may also be used with the Ringi system, etc.
Download a brochure from here (free)
* You will be redirected to a page on another domain managed by us.
Introduction Examples
We want to uniformly disperse different types of powder in a base material. We want to defoam high-viscosity gels without applying temperature.
Mixing and defoaming with near-zero contamination!
Uniform Dispersion of Titanium Oxide, etc.Defoamin…
We want to defoam small amounts of samples for research and development applications.
Mixing and defoaming even with amounts as small as 1cc or 2cc!
Mixing and defoaming small amounts of samples in v…
We want to process one batch in a 1L size at a time.
Suitable for medium capacity!
Covered by medium size. Quick high-precision dispe…
We want to perform dispersing, defoaming, and separating with one unit.
Multiple Processes Resolved with One Unit!
Carbon materials can be dispersed and defoamed wit…
We want to defoam while in syringes
Powerful centrifugal × vacuum defoaming!
Air bubbles having entered syringes are defoamedAd…
We want to uniformly disperse fillers and resins having different specific gravities, without significantly increasing the temperatures of materials.
Suppression of heat generated during dispersion!
Uniform dispersion of resins + fillers (diamond, g…
Although mixing can be performed by the current method, air bubbles are generated and several hours are required for the bubbles to dissipate.
Substantial improvement in work efficiency!
Defoaming of high-viscosity paints performed in a …
We want to continue using designated bottles for mass production
Compatible with customer-designated containers!
High-precision uniform dispersion at a mass-produc…
Product Information
- Search by Model
- Search by Throughput and Capacity
- Search by Application
-
Large Capacity
4000ml x 2 cups ~ 7000ml x 2 cups
Medium Capacity
1100ml x 2 cups ~ 2000ml x 2 cups
Small Capacity
~ 400ml x 2 cups
* The above show volumetric capacities. The weight per volume varies depending on the specific gravity of the material.
-
Mixing
Example material: Printing ink
Defoaming
Example material: High-viscosity adhesive
Dispersing
Example material: Fluorescent powder + Resin
Crushing
Example material: Colored stone (zirconia balls used)
Kneading
Example material: Clay
Separating
Example material: Adhesive + Colored stone
Emulsifying
Example material: Egg + Oil + Vinegar
