Kakuhunter’s Mixing Mechanism

The planetary centrifugal mixer ”Kakuhunter” mixes and disperses uniformly while simultaneously defoaming.

Principles of Mixing and Defoaming

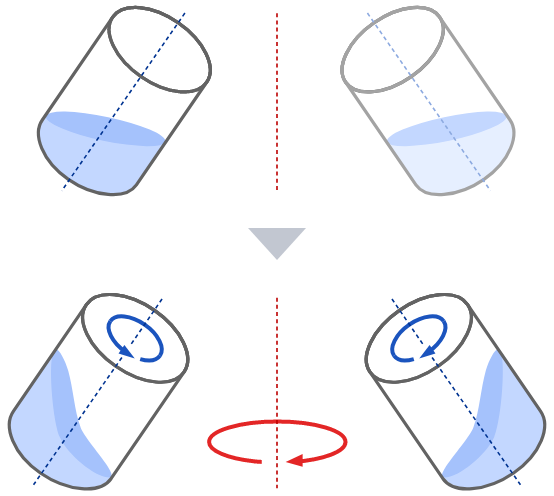

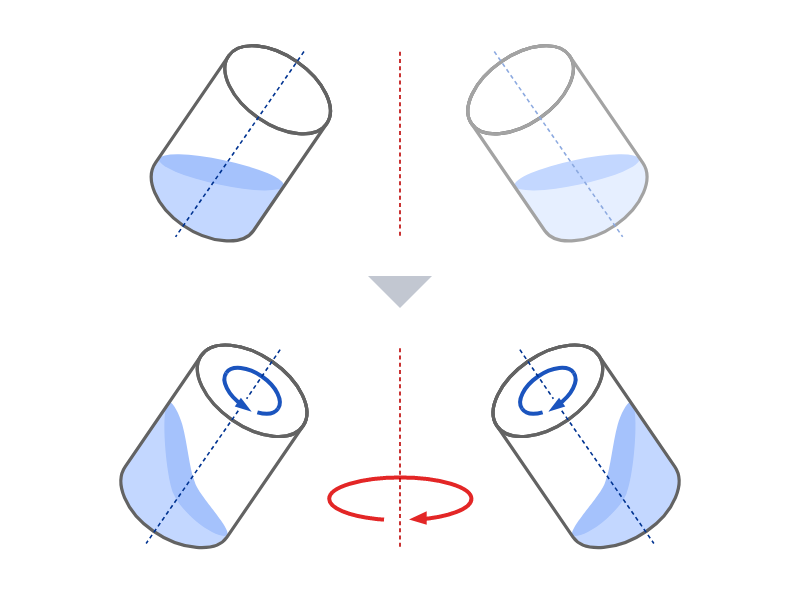

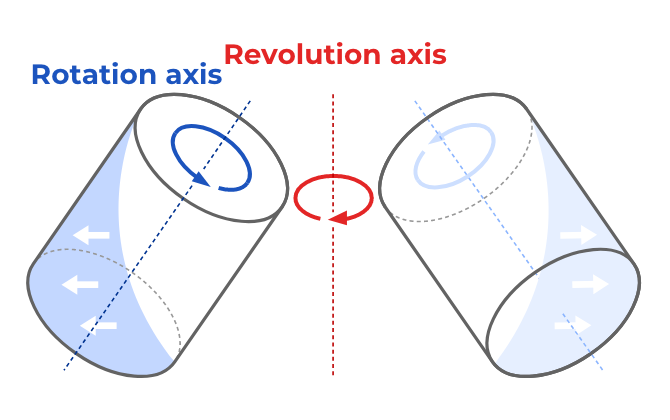

  1. The containers revolve
  2. Rotation starts simultaneously
  3. Vortex and up-and-down flows are generated and mixing proceeds
  4. Defoaming is performed as bubbles are separated and broken

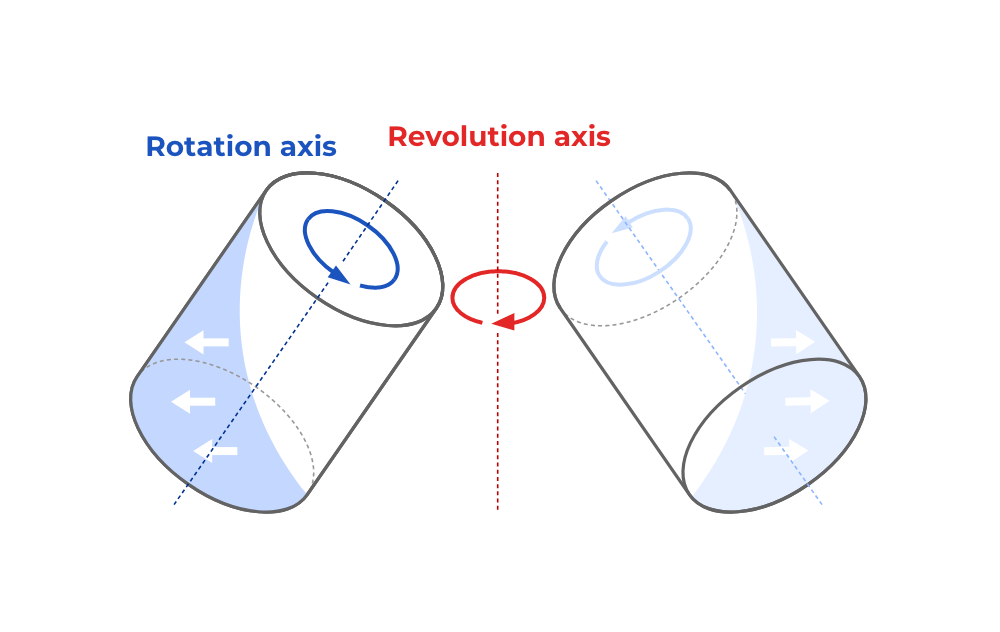

By rotating while revolving …

Shearing forces are generated between materials and cup sidewalls

MixingDefoaming

Generation of up-and-down convection flows

MixingDefoaming

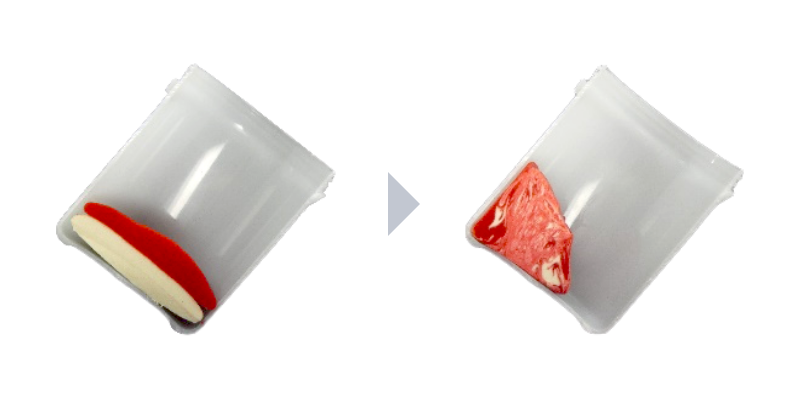

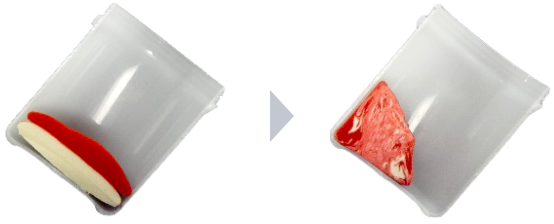

Mixing / defoaming while preventing separation

MixingDefoaming

Bubble breaking effect by thin-film formation of materials

Defoaming

  1. The containers revolve

    Action of rotation

    Centrifugal forces are given to materials
    Effect of isolating air bubbles

  2. Rotation starts simultaneously.

    Action of rotation

    Generation of vortex flows

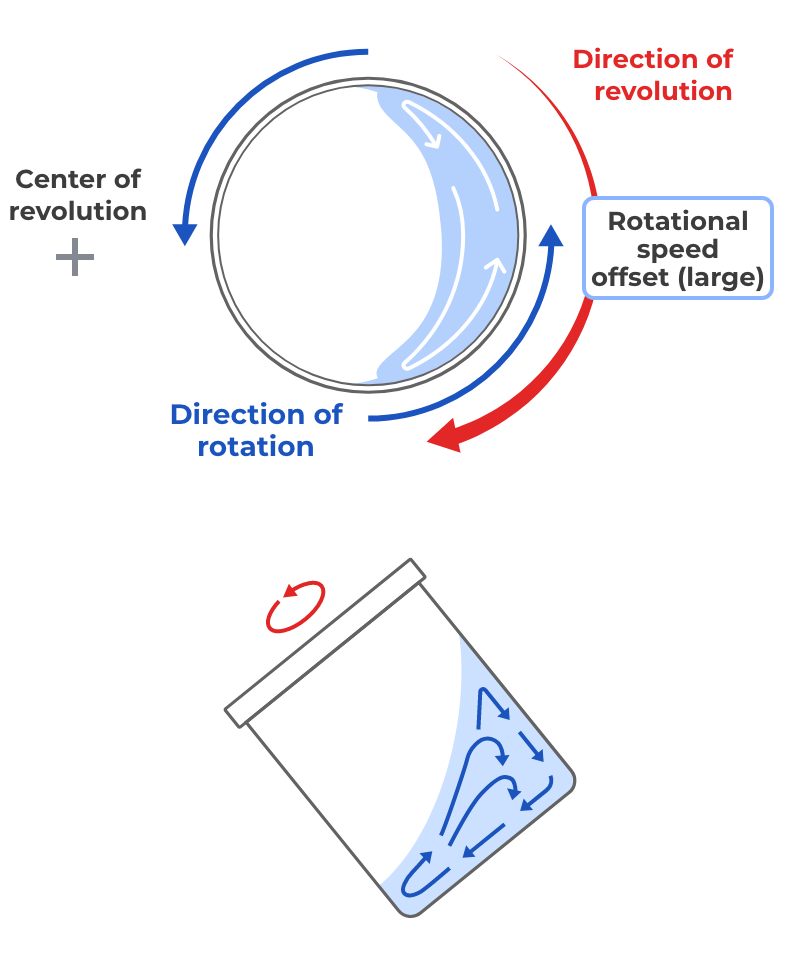

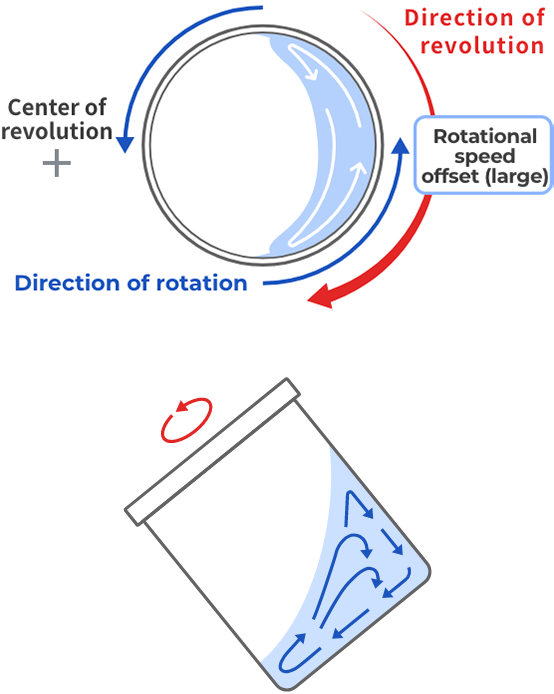

  3. Vortex and up-and-down flows are generated and mixing proceeds.

    Up-and-down convection flows of materials by cup inclination

    Flowing in vortex form by torsional moment as up-and-down convection flows are generated by performing revolution and rotation simultaneously

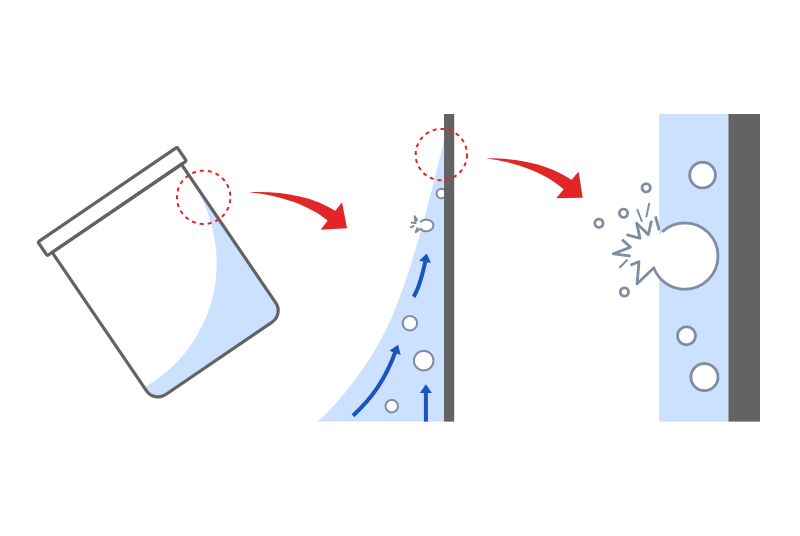

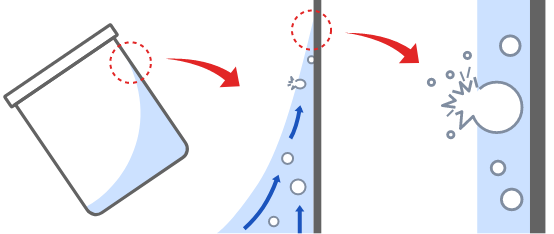

  4. Defoaming is performed as bubbles are separated and broken

    State of bubble breaking by thin-film formation of materials

    As the materials flow, air bubbles also flow, but since strong centrifugal forces are exerted on materials, large air bubbles in the materials are broken near the center of the surface, and smaller air bubbles are broken as they are drawn out to form a thin film on cup sidewalls.
