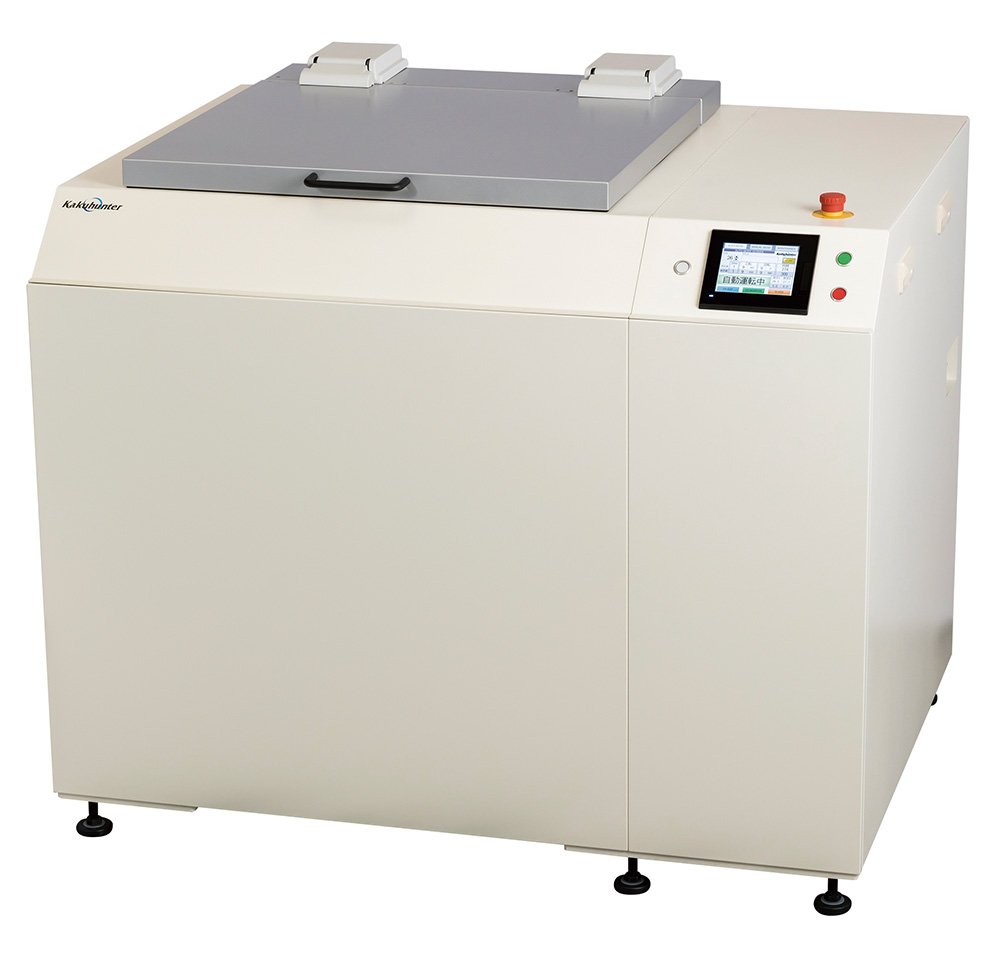

Kakuhunter SK-4000T

· 4000 ml x 2 cups spec
　(max weight 5kg x 2 cups)
· Easy operation with a liquid crystal touch
　panel
· Compatible with SUS containers

Throughput

5kg x 2 cups

Function

Individual Revolution and Rotation Speed Control System
Step Operation

Click here for more details on customization.

Mode

Rotation speed creates up and down like wave, which enhances mixing force.

· Want to mix and defoam large-capacity
　materials.
· Want to mix and defoam high-viscosity
　materials and materials that are different in
　specific gravities.

[Feature 1] Capacity / Throughput

· 4000ml container x 2 cups model!

· Can process up to 10kg (including the weight of 2 containers in total).

[Feature 2] Efficiency / Safety

Smoother Setting / Removal of Containers!
It is hard work to place heavy containers filled with materials on the cup trays and remove them from the cup trays.
Also, it is troublesome to make a half turn of the cup tray rotor by hand.
So,！！
(1) the “rotor stopping position setting function” that stops the rotor at a position that makes it easy to
　　remove containers; and
(2) the “rotor 180-degree turning function” that moves the container on the opposite side to a position for
　　easy removal have been equipped!!

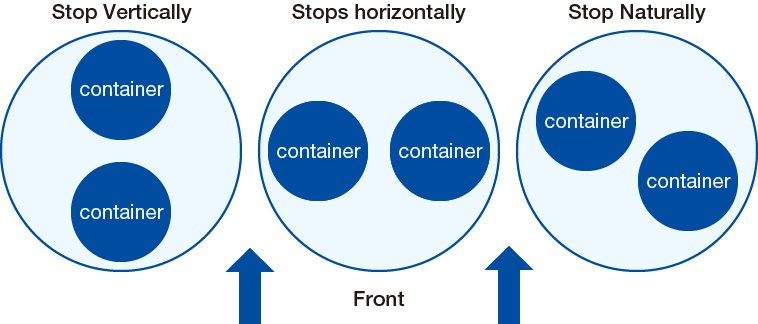

(1) What is the “rotor stopping position setting function?” The cup tray rotor stopping position at the end of
　　running can be selected from the following
　　(Schematic view from the top of the machine)

(2) What is the “cup tray rotor 180-degree turning function?” Pressing the button makes a half turn of the rotor
　　(180-degree turn).

Step 1
● Remove one container.
SK4000TVime-ji 4.png

Step 2
● Close the lid of the machine and press the button.
SK4000TVime-ji 5.png

Step 3

● The rotor makes a half turn and stops at the same position as the previous container. SK4000TVime-ji 6.png

[Features 3] Adoption of a Liquid Crystal Touch Panel

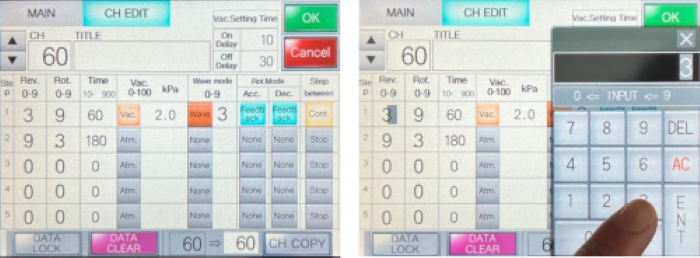

Easier Operation With a Touch Panel!

· Just touch the place you want to enter.
· Numerical values of speeds, operating time, etc., can be entered directly from the pop-up numeric keypad. There
　is no need for cursor movements with keys.


　　　　　　　Initial screen　　　　　 Enter by using the numeric keypad

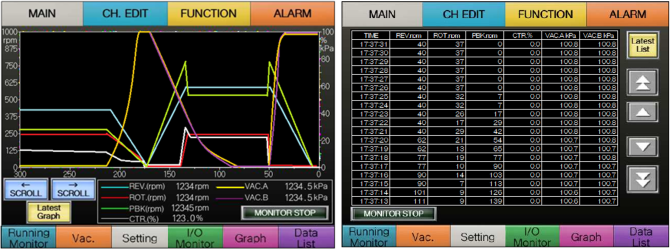

Operating Data is Displayed Graphically and Numerically

· Speeds of revolution and rotation, vacuum pressure, and other data can be displayed in graph or log form.

　　　　　　　　Graph display　　　　　　　　　　　　　　　Log data display

　　　　　　　　　　　　　　(*) The data download function is customizable.

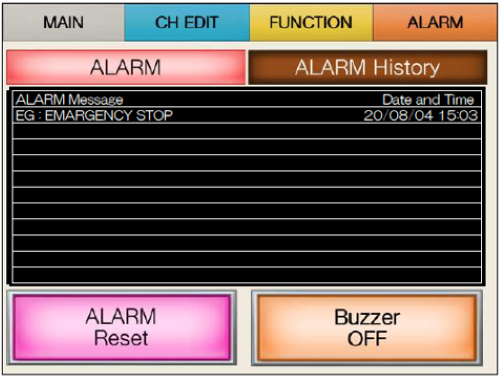

Error Information

· When an error occurs, the alarm and error information are displayed on the screen, allowing for
　a smooth response.


[Feature 4] Customization and Modifications

· Modifications according to your equipment standards
　We respond to modifications flexibly according to your equipment standards, such as installation of a signal
　tower or revolving light, exhaust duct installation, and air purge mechanism. If you have any requests,
　please feel free to consult us.

· Operating data log download function
　Use the data for your quality control and process control.

■ Specifications

Cup size		4000ml commercially available containers or standard SUS containers [customizable]
Max throughput		5kg (container included) x 2 cups [customizable]
Other containers		A variety of containers and syringes can be used by use of an adapter
Speed of revolution		120～600rpm Settable at 9 steps
Speed of rotation		with respect to 0 ~ 1.0 x revolution Settable at 10 steps
Settable time		10 ~ 900 sec. x 5 steps * 5 steps totaling up to 25 min.
Step mode		5 steps Continuous operation can be performed with 5 different types of operation patterns (condition settings)
Conditions setting memory	User-settable channels	90 CH
	Fixed data channels	10 CH
Power supply voltage		Three-phase 200-240VAC±10% 50/60Hz
Power consumption		Max 15KVA
External dimensions		W1330×D1010×H1120(mm)
Weight of the main unit		Approx. 700kg

* It differs machine throughput depending on materials characteristic.
* Revolving speed may change depending on materials characteristic.
* Detailed specification may change without prior notice.
